Features:

Normally "OFF" Configuration
High Speed Switching. . . . . . . . . . under 1 ns (typically)
Ultra Low Capacitance . . . . . . . . . ciss <3.5 pf (typically)
Tight Matching Characteristics
Pin Compatible to Industry Standard Dual JFETs with Addition of Substrate Bias Pin




Application

Wideband Differential Amplifiers
Cascode Amplifiers
High Intercept Point Balanced Mixers
Oscillators
High Speed Analog Comparators




Pinout

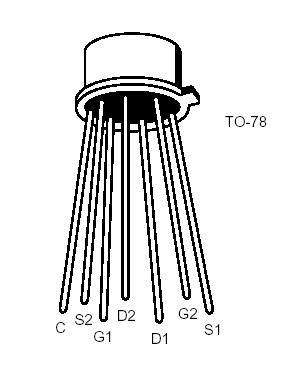

Connection Diagram




Specifications

VDS Drain-Source Voltage. . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . . +20V
VSD Source-Drain Voltage. . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . . +10V
VDB Drain-Body voltage. . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . . +25V
VSB Source-Body Voltage . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . . +15V
VGD Gate-Drain Voltage. . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . .+25V
VGS Gate-Source Voltage . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . .+25V
VGB Gate-Body Voltage . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. . +25V
VG1G2 Gate-to-Gate Voltage . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. .. +25V
VD1D2 Drain-to-Drain Voltage . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . .. ..+20V
VS1S2 Source-to-Source Voltage . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . +15V
ID Continuous Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+50 mA
Device Dissipation (each side). . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 mW
Derating Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.88 mW/oC
Total Device Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 mW
Derating Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 mW/oC
Operating Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . . . -55 to +125oC
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-55 to +150oC
Lead Temperature (1/16' from mounting surface for 10 sec.). . . . . . . . . . . . . +260oC




Description

The SD411 is constructed utilizing Calogic's high speed lateral DMOS techniques featuring tight matching characteristics between each FET. SD411 is an excellent choice for instrumentation, communication, RF and Video designs.
