SD4100

Transistors RF Bipolar Power NPN 28V 470-860MHz

product image

SD4100 Picture
See larger image
SeekIC No. : 00218376 Detail

SD4100: Transistors RF Bipolar Power NPN 28V 470-860MHz

SD4100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD4100
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Dual Base Maximum Operating Frequency : 860 MHz
Collector- Emitter Voltage VCEO Max : 32 V Emitter- Base Voltage VEBO : 3.5 V
Continuous Collector Current : 16 A Maximum DC Collector Current : 16 A
Power Dissipation : 220 W Package / Case : M173
Packaging : Bulk

Description

Continuous Collector Current : 16 A
Packaging : Bulk
Maximum Operating Frequency : 860 MHz
Emitter- Base Voltage VEBO : 3.5 V
Collector- Emitter Voltage VCEO Max : 32 V
Package / Case : M173
Power Dissipation : 220 W
Maximum DC Collector Current : 16 A
Configuration : Single Dual Base


Application

470 - 860 MHz
28 VOLTS
CLASS AB PUSH PULL
DESIGNED FOR HIGH POWER LINEAR OPERATION
HIGH SATURATED POWER CAPABILITY
INTERNAL INPUT/OUTPUT MATCHING NETWORKS PROVIDE HIGH BALANCED IMPEDANCES FOR SIMPLIFIED CIRCUIT DESIGN AND WIDE INSTANTANEOUS
    BANDWIDTH
GAIN = 8.5 dB MIN.
POUT = 100 W MIN. CW
POUT = 125 W PEAK SYNC


Pinout

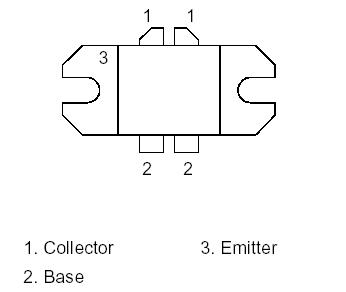

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCBO Collector-Base Voltage 65 V
VCEO Collector-Emitter Voltage 32 V
VEBO Emitter-Base Voltage 3.5 V
IC Device Current 16 A
PDISS Power Dissipation 220 W
TJ Junction Temperature +200 °C
TSTG Storage Temperature - 65 to +150 °C



Description

The SD4100 is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for high linearity Class AB operation in UHF and Band IV, V television transmitters and transposers.
