Part Number: SD56120M
MFG: ST
D/C: 0208+
Description: The SD56120M is a common source N-Channel enhancement- mode lateral Field-Effect RF power transistor d...
- Table of contents:
SD56120M
-
Suppliers
DataSheet
General Description
SD56120M General Description
The SD56120M is a common source N-Channel enhancement- mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz.
The SD56120M is designed for high gain and broadband performance operating in common source mode at 32 V. Its internal matching makes it ideal for TV broadcast applications requiring high linearity.
SD56120M Maximum Ratings
| Symbol | Parameter | Value | Unit |
| V(BR)DSS | Drain-Source Voltage | 65 | V |
| VGS | Gate-Source Voltage | ± 20 | V |
| ID | Drain Current | 14 | A |
| PDISS | Power Dissipation (@ Tc = 70°C) | 236 | W |
| Tj | Max. Operating Junction Temperature | 200 | °C |
| TSTG | Storage Temperature | -65 to +150 | °C |
SD56120M Features
• EXCELLENT THERMAL STABILITY
• COMMON SOURCE CONFIGURATION, PUSHPULL
• POUT = 120 W WITH 13 dB gain @ 860 MHz /32V
• BeO FREE PACKAGE
• INTERNAL INPUT MATCHING
• COMMON SOURCE CONFIGURATION, PUSHPULL
• POUT = 120 W WITH 13 dB gain @ 860 MHz /32V
• BeO FREE PACKAGE
• INTERNAL INPUT MATCHING

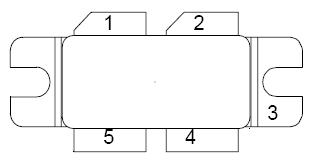

SD56120M Connection Diagram
SD56120M
PDF/DataSheet Download
- Datasheet: SD56120M
- File Size: 203828 KB
- Manufacturer: STMicroelectronics
- Click here to Download
