SD60C32P

Features: · 8-bit CPU optimized for control applications. · MCS-51 fully compatible instruction set· Pin-to-pin compatible with intel's 80C52/80C32. · ONCETM (ON-circuit emulation) mode· 256 Bytes of on-chip data RAM. · Power control modes· 60C52 low power CPU only. -Idle mode· 32 programmable I/O...

product image

SD60C32P Picture
See larger image
SeekIC No. : 004486682 Detail

SD60C32P: Features: · 8-bit CPU optimized for control applications. · MCS-51 fully compatible instruction set· Pin-to-pin compatible with intel's 80C52/80C32. · ONCETM (ON-circuit emulation) mode· 256 Bytes o...

SD60C32P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD60C32P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-bit CPU optimized for control applications. · MCS-51 fully compatible instruction set
· Pin-to-pin compatible with intel's 80C52/80C32. · ONCETM (ON-circuit emulation) mode
· 256 Bytes of on-chip data RAM. · Power control modes
· 60C52 low power CPU only. -Idle mode
· 32 programmable I/O lines. -Power down mode
· Three 16bit timer/counters. · 6 interrupt source
· TTL and CMOS compatible logic levels
· 64K external program memory space and data memory space.

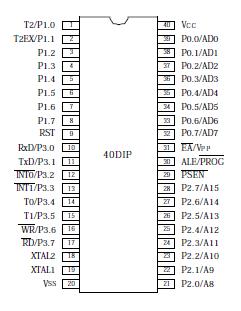

Pinout

Connection Diagram


Specifications

Characteristic
Rating
Unit
Ambient temperature under bias
0 ~+70
°C
Storage temperature
-65 ~ +150
°C
Voltage on any pin to Vss
-0.5~Vcc + 0.5
V
Maximum IOL per I/O pin
15
㎃
Power dissipation
1
Watt



Description

The AUK 60C32/P 60C52/P is a high-performance micro controller fabricated with AUK high-density CMOS technology. The AUK CMOS technology combines the high speed and density characteristics of MOS with the low power attributes of CMOS.

The 60C52 contains a 8K×8 ROM, a 256×8 RAM, 32 I/O lines, three 16bit counter/timers, a six sourc two-priority level nested interrupt structure, a serial I/O port for either multiprocessor communication, I/O expansion or full duplex UART, and on-chip oscillator and clock circuits.

In addition, the 60C32/P 60C52/P have two software selectable modes of power reduction idle mode and power-down mode. The idle mode of 60C32/P 60C52/P freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning.

The power-down mode of 60C32/P 60C52/P saves the RAM contents but freezes the oscillator , causing all other chip function to be inoperative.
