General Description
SDA32 General Description
The SDA32 Schottky Barrier Diode Array is designed to reduce reflection noise on high speed parallel data lines.
The device helps suppress transients caused by transmission line reflections, cross talk and switching noise.
The SDA32 consists of an array of 16 high speed Schottky diode pairs suitable for clamping to VCC and / or Gnd.
SDA32 Maximum Ratings
Steady-State Reverse Voltage 7V
Continuous Forward Current 50mA(1)
170mA(2)
Repetitive Peak Forward Current (3) 200mA(1)
1A(2)
Continuous Total Power Dissipation (4) 625mW
(SO and DIL packages)
Operating Free-air Temperature Range 0 to 70°C
Storage Temperature Range -65 to 150°C
* Stresses beyond those listed above may cause permanent damage to the device. These are stress
ratings only and functional operation of the device at these or any other conditions beyond those
indicated under the recommended operating conditions is not implied. Exposure to absolute
maximum rated conditions for extended periods of time may affect device reliability.
Continuous Forward Current 50mA(1)
170mA(2)
Repetitive Peak Forward Current (3) 200mA(1)
1A(2)
Continuous Total Power Dissipation (4) 625mW
(SO and DIL packages)
Operating Free-air Temperature Range 0 to 70°C
Storage Temperature Range -65 to 150°C
* Stresses beyond those listed above may cause permanent damage to the device. These are stress
ratings only and functional operation of the device at these or any other conditions beyond those
indicated under the recommended operating conditions is not implied. Exposure to absolute
maximum rated conditions for extended periods of time may affect device reliability.
SDA32 Features
· Reduced reflection noise
· Repetitive peak forward current - 200mA
· 16 diode pairs
· SO20 and DIL20 packages
· Repetitive peak forward current - 200mA
· 16 diode pairs
· SO20 and DIL20 packages
SDA32 Typical Application
· Termination of data lines
· Protection of memory devices
· Protection of memory devices

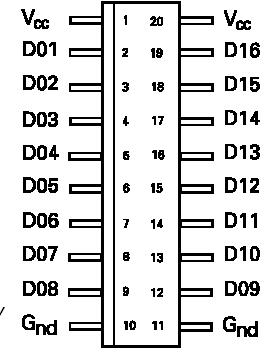

SDA32 Connection Diagram
SDA32
