SDA4335

Features: • Operation range 8 to 11 V• I2C Bus and 3Wire Bus operation selectable• Bus interface with low threshold voltage Schmitt-Trigger inputs for interfacing 3V or 5V microprocessors• 16 bit fully programmable R- and N-Counter• Resolution e.g.100kHz, 50kHz, 25kHz...

product image

SDA4335 Picture
See larger image
SeekIC No. : 004486860 Detail

SDA4335: Features: • Operation range 8 to 11 V• I2C Bus and 3Wire Bus operation selectable• Bus interface with low threshold voltage Schmitt-Trigger inputs for interfacing 3V or 5V micropro...

SDA4335 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDA4335
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation range 8 to 11 V
• I2C Bus and 3Wire Bus operation selectable
• Bus interface with low threshold voltage Schmitt-Trigger inputs for interfacing 3V or 5V microprocessors
• 16 bit fully programmable R- and N-Counter
• Resolution e.g.100kHz, 50kHz, 25kHz, 12.5kHz, 10kHz, 6.25kHz, 6kHz, 5kHz, 3kHz, 1kHz.
• 4 programmable phase detector currents : 0.5mA, 1mA, 2mA, 4mA.
• Rail to rail Loop-amplifier
• 2 Chargepump-outputs for different timeconstants
• High running 2 pin crystal oscillator fQ= 61.5MHz , adjustable via Bus
• Switchable output for 10.25MHz (500mVss @ load-capacitance 10pF)
• Multiplexed 7 bit ADC for ADC_IN1 and ADC_IN2. Result read out via bus (2 bytes).
• 7 bit DAC-output, range 0...VREFD5V
• 4 bit DAC-output, range 0...VREFD5V
• 3 free programmable output PORTS
• PORT 1: free programmable output
• PORT 2: for AM seek mode or input port for stereo-indicator
• PORT 3: IFC_SD for IF counter resolution or input port for station-detect
• Search tuning stop with IF counter measurement, result read out via bus or port.


Pinout

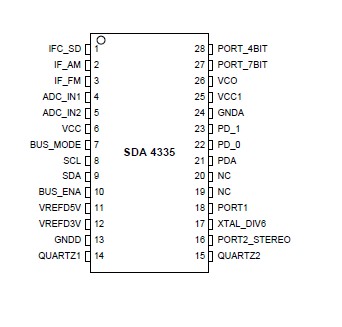

Connection Diagram


Specifications

The maximal ratings may not be exceeded under any circumstances, not even momentary and individual,
as permanent damage to the IC will result

Parameter Symbol

Limit Values

 Unit
min. typ.max.
ESD-Protection all bipolar pins
HBM ( R=1.5kW , C=100pF )		 VESD - 2 2 kV
ESD-Protection all CMOS pins
HBM ( R=1.5kW , C=100pF )		 VESD t.b.d. t.b.d. kV
Total power dissipation Ptot   150 mW
Ambient temperature TA - 40 85
Junction temperature Tj   125
Storage temperature Tstg - 40 125
Thermal resistance P-TSSOP-28 (sys-air) TthSA   114 K/W



Description

The SDA 4335 is a Car-Radio PLL frequency synthesizer implemented in Infineon BiCMOS technology B6CA. The device contains the PLL, 2 pin 61.5MHz Oscillator internally coupled to PLL, an IF Counter for AM & FM SDA 4335 an 7 bit ADC, an 7 & 4 bit DAC and additonal 2 ports for inputor output-functions. Primary applications are in Car-Radio systems.
