Purchase SDA4336, In-stock SDA4336 From SeekIC.
Part Number: SDA4336
Description: The SDA 4336 is a FM car radio PLL synthesizer system with IF counter for STS, a 2 channel multiplexed...
- Table of contents:
SDA4336
-
Suppliers
DataSheet
General Description
SDA4336 General Description
The SDA 4336 is a FM car radio PLL synthesizer system with IF counter for STS, a 2 channel multiplexed 7 bit ADC, a 7 bit DAC- and a 4 bit DAC multifunctional output.The serial bus is switchable between I2C and 3 Wire bus mode.
SDA4336 Maximum Ratings
The maximal ratings may not be exceeded under any circumstances, not even momentary and individual,
as permanent damage to the IC will result.
as permanent damage to the IC will result.
| Parameter | Symbol | Limit Values | Units | |
| min. | max. | |||
| ESD-Protection all bipolar pins HBM ( R=1.5kW , C=100pF ) |
VESD | - 2 | 2 | kV |
| ESD-Protection all CMOS pins HBM ( R=1.5kW , C=100pF ) |
VESD | t.b.d. | t.b.d. | kV |
| Total power dissipation | Ptot | 150 | mW | |
| Ambient temperature | TA | - 40 | 85 | |
| Junction temperature | Tj | 125 | ||
| Storage temperature | Tstg | - 40 | 125 | |
| Thermal resistance T-SSOP-28 (sys-air) | TthSA | 114 | K/W | |
SDA4336 Features
• Operation range 8 to 11 V
• I2C Bus and 3Wire Bus operation selectable
• Bus interface with low threshold voltage Schmitt-Trigger inputs for interfacing 3V or 5V microprocessors
• 16 bit fully programmable R- and N-Counter
• Resolution e.g.100kHz, 50kHz, 25kHz, 12.5kHz, 10kHz, 6.25kHz, 6kHz, 5kHz, 3kHz, 1kHz.
• 4 programmable phase detector currents : 0.5mA, 1mA, 2mA, 4mA.
• Rail to rail Loop-amplifier
• 2 Chargepump-outputs for different timeconstants
• High running 2 pin crystal oscillator fQ= 61.5MHz , adjustable via Bus
• Switchable output for 10.25MHz (500mVss @ load-capacitance 10pF)
• Multiplexed 7 bit ADC for ADC_IN1 and ADC_IN2. Result read out via bus (2 bytes).
• 7 bit DAC-output, range 0...VREFD5V
• 4 bit DAC-output, range 0...VREFD5V
• 3 free programmable output PORTS
• PORT 1: free programmable output
• PORT 2: for AM seek mode or input port for stereo-indicator
• PORT 3: IFC_SD for IF counter resolution or input port for station-detect
• Search tuning stop with IF counter measurement, result read out via bus or port.
• two channel digital alignment is available
• I2C Bus and 3Wire Bus operation selectable
• Bus interface with low threshold voltage Schmitt-Trigger inputs for interfacing 3V or 5V microprocessors
• 16 bit fully programmable R- and N-Counter
• Resolution e.g.100kHz, 50kHz, 25kHz, 12.5kHz, 10kHz, 6.25kHz, 6kHz, 5kHz, 3kHz, 1kHz.
• 4 programmable phase detector currents : 0.5mA, 1mA, 2mA, 4mA.
• Rail to rail Loop-amplifier
• 2 Chargepump-outputs for different timeconstants
• High running 2 pin crystal oscillator fQ= 61.5MHz , adjustable via Bus
• Switchable output for 10.25MHz (500mVss @ load-capacitance 10pF)
• Multiplexed 7 bit ADC for ADC_IN1 and ADC_IN2. Result read out via bus (2 bytes).
• 7 bit DAC-output, range 0...VREFD5V
• 4 bit DAC-output, range 0...VREFD5V
• 3 free programmable output PORTS
• PORT 1: free programmable output
• PORT 2: for AM seek mode or input port for stereo-indicator
• PORT 3: IFC_SD for IF counter resolution or input port for station-detect
• Search tuning stop with IF counter measurement, result read out via bus or port.
• two channel digital alignment is available

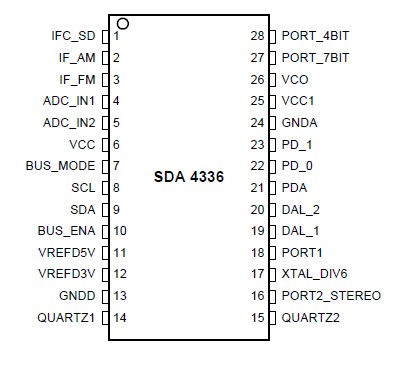

SDA4336 Connection Diagram
SDA4336
