SDA5273
-
Suppliers
DataSheet
General Description
SDA5273 Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | Test Condition | ||
| min. | typ. | max. | ||||
| Supply voltage | VDD | 0 | 6.0 | V | ||
| Ambient temperature | TA | 0 | 70 | °C | ||
| Storage temperature | Tstg | 20 | 125 | °C | ||
| Power consumption | Ptot | 1.8 | W | |||
| Electrostatic discharge | 2000 | V | 100 pF, 1 k HBM according to MIL-standard 883 method 3015.7 | |||
SDA5273 Features
Single chip teletext IC
Analog CVBS-input with onchip clamping circuitry
Slicer
Supports level 1, 2.5 and 3.5 ETSI teletext standard
Stores up to 14 teletext pages on chip
Stores up to 2048 teletext pages with external 16 M memory
SDA 5275: full level 2.5 processing
Analog RGB-output
41 latin script languages
12x10 character size
Parallel display attributes
64 from 4096 colors selectable
Enhanced flash modes
Dynamically redefinable character set (DRCS, PCS)
Pixel graphics
Fullscreen display (64x32 or 80x24 character positions)
Horizontal and vertical scrolling
Graphic cursors
4:3 and 16:9 display
Multinorm display (50/60/100/120 Hz)
RISC-processor
Firmware downloadable
PC / 3 wire UART-interface (1 Mbit/s)
Independent clocks for acquisition and display
Tools for greatly simplified software development
24-Kbyte on-chip reconfigurable DRAM
44160-bit character ROM
One external crystal for all standards
Analog CVBS-input with onchip clamping circuitry
Slicer
Supports level 1, 2.5 and 3.5 ETSI teletext standard
Stores up to 14 teletext pages on chip
Stores up to 2048 teletext pages with external 16 M memory
SDA 5275: full level 2.5 processing
Analog RGB-output
41 latin script languages
12x10 character size
Parallel display attributes
64 from 4096 colors selectable
Enhanced flash modes
Dynamically redefinable character set (DRCS, PCS)
Pixel graphics
Fullscreen display (64x32 or 80x24 character positions)
Horizontal and vertical scrolling
Graphic cursors
4:3 and 16:9 display
Multinorm display (50/60/100/120 Hz)
RISC-processor
Firmware downloadable
PC / 3 wire UART-interface (1 Mbit/s)
Independent clocks for acquisition and display
Tools for greatly simplified software development
24-Kbyte on-chip reconfigurable DRAM
44160-bit character ROM
One external crystal for all standards

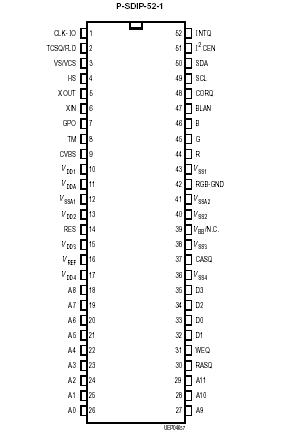

SDA5273 Connection Diagram
SDA5273
PDF/DataSheet Download
- Datasheet: SDA5273
- File Size: 146105 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
- ·SDA01
- SANKEN [Sanken electric]
- PNP Darlington General purpose
- 21011 KB
- ·SDA03
- SANKEN [Sanken electric]
- Surface-mount Power Transistor Array
- 25333 KB
- ·SDA04
- SANKEN [Sanken electric]
- Surface-mount Power Transistor Array
- 24449 KB
- ·SDA05
- SANKEN [Sanken electric]
- PNP Darlington 3-phase motor drive
- 21162 KB
- ·SDA07H1BD
- ITT [ITT Industries]
- Low Profile DIP Switches
- 257142 KB
- ·SDA09H0B
- ITT [ITT Industries]
- Low Profile DIP Switches
- 257142 KB
- ·SDA09H0BD
- ITT [ITT Industries]
- Low Profile DIP Switches
- 257142 KB
- ·SDA09H0K
- ITT [ITT Industries]
- Low Profile DIP Switches
- 257142 KB
