SDP530WKF

Features: ` Low capacitance : Max 0.5pF` Low series resistance : rs=3(Typ.)@IF=10mA` AGC and attenuator diode for VHF/UHF band tunerPinoutSpecifications Characteristic Symbol Ratings Unit Continuous reverse voltage VR 50 V Forward current IF* 50 mA Juncti...

product image

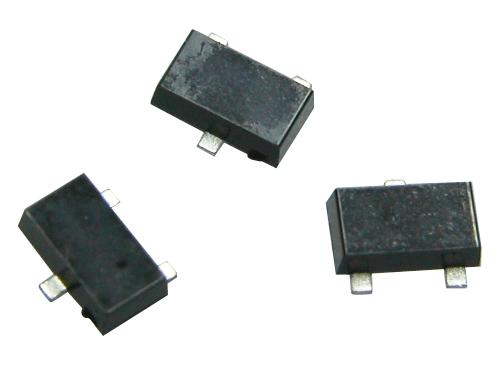

SDP530WKF Picture
See larger image
SeekIC No. : 004487118 Detail

SDP530WKF: Features: ` Low capacitance : Max 0.5pF` Low series resistance : rs=3(Typ.)@IF=10mA` AGC and attenuator diode for VHF/UHF band tunerPinoutSpecifications Characteristic Symbol Ratings ...

SDP530WKF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDP530WKF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low capacitance : Max 0.5pF
` Low series resistance : rs=3(Typ.)@IF=10mA
` AGC and attenuator diode for VHF/UHF band tuner




Pinout

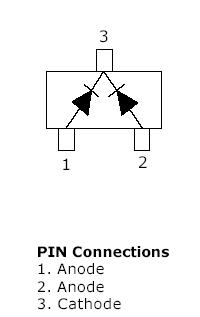

Connection Diagram








Specifications

Characteristic
Symbol
Ratings
Unit
Continuous reverse voltage
VR
50
V
Forward current
IF*
50
mA
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55 ~ 150
°C





Description

Best Combination of Efficiency, performance for High Frequency Switching
PIN diodes are used as high frequency band switch of TV Tuner, antenna switching module of cellular phone and Attenuator of RF Band Application Sets. Especially SDP530WKF is used RF attenuator of VHF Band for FM tuner, it also provide low capacitance and low series resistance and Two planar Pin diodes in Common Cathode of the SDP530WKF in a SOT23F small SMD plastic package.
