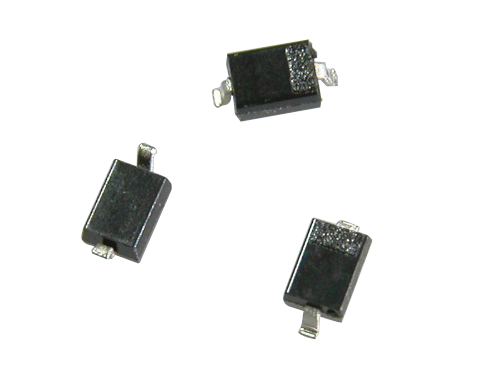

See larger image

SeekIC No. : 004487177 Detail

SDS511: Features: • Ultra high speed switching application• Low forward voltage• Fast reverse recovery time• Small total capacitancePinoutSpecifications Characteristic Symb...

SDS511 Data Sheet

Get Latest Price

Part Number:: SDS511
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SDS50L evaluate
Features: `High power FAST recovery diode series`4.5 s recovery time`High voltage ratings up to 45...
SDS5S220A evaluate
US $9.41 - 10.39 / Piece

Time Delay & Timing Relays 5 SECOND S TMR

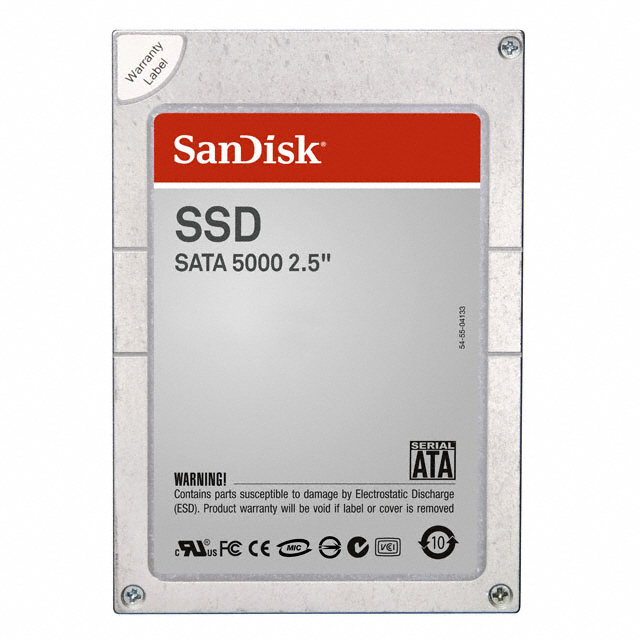

SDS5C-016G-000010 evaluate
SSD 2.5" SATA 16GB

Product Details

Description

Features:

• Ultra high speed switching application
• Low forward voltage
• Fast reverse recovery time
• Small total capacitance

Pinout

Connection Diagram

Specifications

Characteristic	Symbol	Ratings	Unit
Maximum(peak) reverse voltage	V_RM	85	V
Reverse voltage	V_R	80	V
Maximum(peak) forward current	I_FM	300	mA
Average forward current	I_O	100	mA
Surge current(10ms)	I_FSM	2	A
Power dissipation	P_D	150	mW
Junction temperature	T_j	150
Storage temperature	T_stg	-55to150

Description

Ultra high speed switching application

It meets the requirements of the SDS511 for low leakage current, low switching time, high variation for permitted current and small packages. more elements per package. This Diode are used in all kinds of applications e.g. Safety, Cellular phones, TV chassis, Camcorder etc.
