Product Details

Description

Features:

• Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )
• Small package for use in portable electronics
• Low operating and clamping voltage

Application

• Cellular Handsets and Accessories
• Microprocessor based equipment
• Notebooks, Desktops and Servers

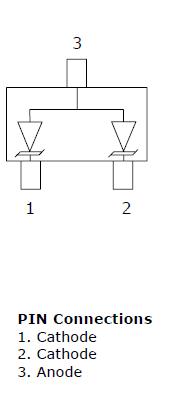

Pinout

Connection Diagram

Specifications

Characteristic	Symbol	Ratings	Unit
Peak pulse power ( tp = 8/20s)	P_PK	300	W
Peak pulse current (tp = 8/20s)	I_PP	12	A
Lead soldering temperature	T_L	260(10sec.)
Operating temperature	T_J	-55to125
Storage temperature	T_stg	-55to150

Description

Transient protections for data lines

This production of the SDT12SF offers to protect against voltage surges in a variety of inductive switching applications. It porvide the most robust protection in the smallset footprint available. Suitable replacement for multi-layer varistors in ESD protections applications
