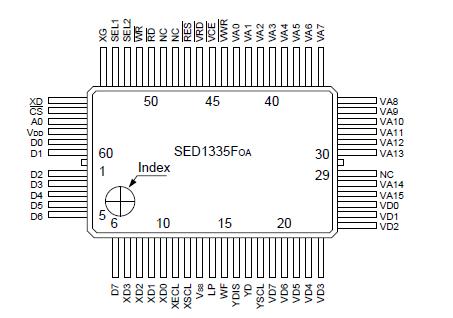

SED1335

Notes:
1. The humidity resistance of the flat package may be reduced if the package is immersed in solder. Use a soldering technique that does not heatstress the package.
2. If the power supply has a high impedance, a large voltage differential can occur between the input and supply voltages. Take appropriate care with the power supply and the layout of the supply lines. (See section 6.2.)
3. All supply voltages are referenced to V_SS = 0V.

The SED1335 series is a controller IC that can display text and graphics on LCD panel.

The SED1335 series can display layered text and graphics,scroll the display in any direction and partition the display into multiple screens.

The SED1335 series stores text, character codes and bitmapped graphics data in external frame buffer memory.Display controller functions include transferring data from the controlling microprocessor to the buffer memory,reading memory data, converting data to display pixels and generating timing signals for the buffer memory,
LCD panel.

The SED1335 series has an internal character generator with 160, 5  × 7 pixel characters in internal mask ROM.The character generators support up to 64, 8 ×16 pixel characters in external character generator RAM and up to 256, 8  × 16 pixel characters in external character generator ROM.
