SED1353

Features: • pin compatible with the SED1352• 16-bit 16 MHz MC68xxx MPU interface• 8/16-bit MPU interface controlled by a READY(or WAIT#) signal• option to use built-in index register or direct-mapping to access one of sixteen internal registers• 2-terminal crystal or ...

product image

SED1353 Picture
See larger image
SeekIC No. : 004487457 Detail

SED1353: Features: • pin compatible with the SED1352• 16-bit 16 MHz MC68xxx MPU interface• 8/16-bit MPU interface controlled by a READY(or WAIT#) signal• option to use built-in index ...

SED1353 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SED1353
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• pin compatible with the SED1352
• 16-bit 16 MHz MC68xxx MPU interface
• 8/16-bit MPU interface controlled by a READY(or WAIT#) signal
• option to use built-in index register or direct-mapping to access one of sixteen internal registers
• 2-terminal crystal or external oscillator support
• 8/16-bit SRAM interface configurations
• split screen display support allowing two different images to be simultaneously displayed
• virtual display support (displays images larger than the panel size through the use of panning)
• display modes:
               black-and-white display
               2/4 bits per pixel, 4/16-level gray-scale display
               2/4/8 bits per pixel, 4/16/256-level color display
• two software power-save modes
• low power consumption
• display memory interface:
              128K bytes using one 64Kx16 SRAMs
              128K bytes using two 64Kx8 SRAMs
              64K bytes using two 32Kx8 SRAMs
              40K bytes using one 8Kx8 and one 32Kx8 SRAM
              32K bytes using one 32Kx8 SRAM
              16K bytes using two 8Kx8 SRAMs
               8K bytes using one 8Kx8 SRAM
• LCD panel configurations:
              single-panel, single-drive passive display
              dual-panel, dual-drive passive display
• maximum number of vertical lines:
              1,024 lines (single-panel, single-drive display)
              2,048 lines (dual-panel, dual-drive display)
• QFP5-100-S2 package (F0A)
• QFP15-100-STD package (F1A)


Application

Seiko Epson Corp. offers the following services through their Sales and Marketing Network:
• Sales Technical Support
• Customer Training


Pinout

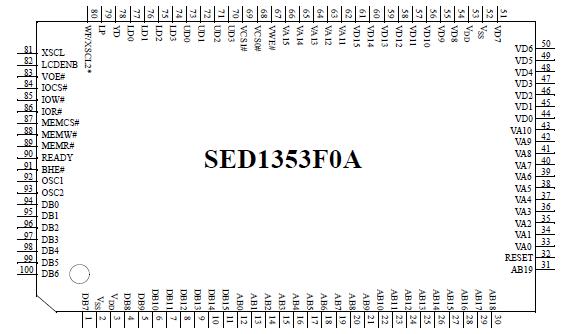

Connection Diagram


Specifications

Symbol
Parameter
Unit
Ratings
VDD
 Supply Voltage
V
VSS - 0.3 to + 6.0
VIN
 Input Voltage
V
VSS - 0.3 to VDD + 0.5
VOUT
 Output Voltage
V
VSS - 0.3 to VDD + 0.5
TSTG
 Storage Temperature
-60to+150
TSOL
 Solder Temperature/Time
260 for 10 sec. max at lead



Description

The SED1353 is a dot matrix graphic LCD controller supporting resolutions up to 1024x1024. It is capable of displaying a maximum of 256 simultaneous colors out of a possible 4096 or 16 gray shades.Design flexibility allows the SED1353 to interface to either an MC68000 family microprocessor or an 8/16-bit MPU/bus with minimum external logic. The Static RAM (SRAM) interface used for the display buffer is optimized for speed and performance, supporting up to 128K bytes.


Two power save modes, combined with operating voltages of 2.7 volts through 5.5 volts, allow for a wide range of applications while providing minimum power consumption.
