The SG117A Series are 3-terminal positive adjustable voltage regulators which offer improved performance over the original 117 design. A major feature of the SG117A is reference voltage tolerance guaranteed within ± 1%, allowing an overall power supply tolerance to be better than 3% using inexpensive 1% resistors. Line and load regulation performance has been improved as well. Additionally, the SG117A reference voltage is guaranteed not to exceed 2% when operating over the full load, line and power dissipation conditions. The SG117A adjustable regulators offer an improved solution for all positive voltage regulator requirements with load currents up to 1.5A.
SG117A Maximum Ratings
Power Dissipation ................................................Internally Limited
Input to Output Voltage Differential ..........................................40V
Storage Temperature Range ...................................-65°C to 150°C
Operating Junction Temperature
Hermetic (K, R, T, L, IG-Packages) ..........................................150°C
Lead Temperature (Soldering, 10 Seconds) ...........................300°C
Note 1. Exceeding these ratings could cause damage to the device.
Input to Output Voltage Differential ..........................................40V
Storage Temperature Range ...................................-65°C to 150°C
Operating Junction Temperature
Hermetic (K, R, T, L, IG-Packages) ..........................................150°C
Lead Temperature (Soldering, 10 Seconds) ...........................300°C
Note 1. Exceeding these ratings could cause damage to the device.
SG117A Features
• 1% output voltage tolerance
• 0.01%/V line regulation
• 0.3% load regulation
• Min. 1.5A output current
• Available in hermetic TO-220
HIGH RELIABILITY FEATURES-SG117A/SG117
♦ Available to MIL-STD-883 and DESC SMD
♦ MIL-M38510/11704BYA - JAN117K
♦ MIL-M38510/11703BXA - JAN117T
♦ LMI level "S" processing available
• 0.01%/V line regulation
• 0.3% load regulation
• Min. 1.5A output current
• Available in hermetic TO-220
HIGH RELIABILITY FEATURES-SG117A/SG117
♦ Available to MIL-STD-883 and DESC SMD
♦ MIL-M38510/11704BYA - JAN117K
♦ MIL-M38510/11703BXA - JAN117T
♦ LMI level "S" processing available

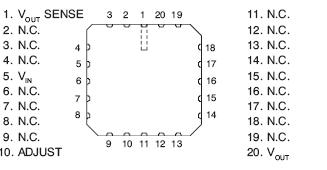

SG117A Connection Diagram
SG117A
PDF/DataSheet Download
- Datasheet: SG117A
- File Size: 219944 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
