SG3543N suppliers, SG3543N price trend, SG3543N PDF download, circuit diagram from SeekIC

Purchase SG3543N, In-stock SG3543N From SeekIC.

MFG:Microsemi-IPG Category:Integrated Circuits (ICs)

Five Points

Category: Integrated Circuits (ICs)

MFG: Microsemi-IPG

Descriptions: IC POWER SUPPLY SUPERVISOR 16DIP

Price Break

1
25
100
500
1000
5000
10000

Unit Price

9.00000
8.10000
6.75000
5.62500
4.50000
3.15000
2.92500

Extended Price

9.00
202.50
675.00
2812.50
4500.00
15750.00
29250.00

(All prices are in USD) Prices for reference only

IC POWER SUPPLY SUPERVISOR 16DIP

Technical/Catalog Information	SG3543N
Vendor	Microsemi-IPG
Category	Integrated Circuits (ICs)
Type	-
Voltage - Supply	4.5 V ~ 40 V
Current - Supply	7mA
Voltage - Input	-
Package / Case	16-DIP
Packaging	Tube
Applications	Power Supply, Supervisor
Operating Temperature	0°C ~ 70°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SG3543N SG3543N

SG3543N
PDF/DataSheet Download

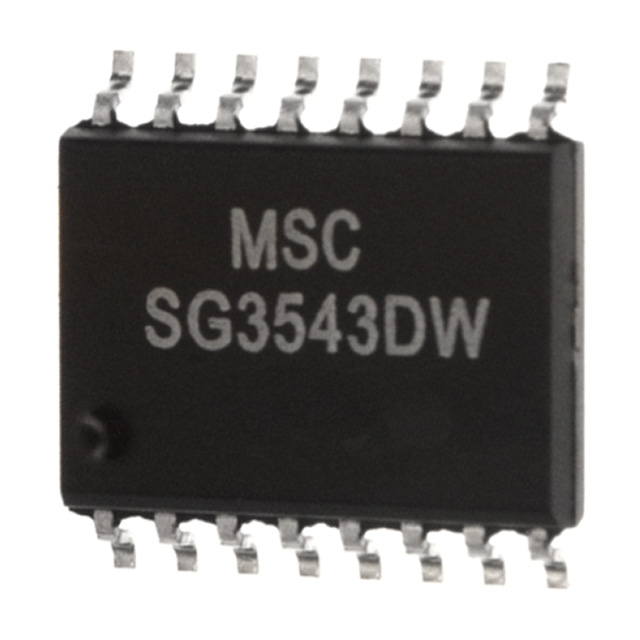

SG3543DW
IC SUPERVISOR PS OUTPUT 16SOIC
SG3543
The SG3543contains all the functions necessary to monitor and control the output of a sophisticated power supply system. Over-voltage (O.V.) sensing with provision to trigger an external SCR "crowbar" shutdown; an under-voltage (U.V.) circuit which can be us...
SG3540
The SG1540/SG3540 is an integrated circuit designed to efficiently provide start-up power from a high-voltage DC bus to a PWM control circuit in a switching power supply. When used on the primary side, it reduces start-up current to less than 1mA and allows ...
SG3532
The SG3532is a versatile, general-purpose voltage regulator designed as a substantially improved replacement for the popular SG723 device. The SG3532 regulators retain all the versatility of theSG723 but have the added benefits of operation with input voltag...
