MFG:SG Package Cooled:TO220-5 D/C:05+
MFG: SG
Package Cooled: TO220-5
D/C: 05+
Description: The SG1635 is a monolithic integrated circuit designed to interface low-level logic signals with high-...
The SG1635 is a monolithic integrated circuit designed to interface low-level logic signals with high-current, inductive, or capacitive loads. This device is particularly adept at high-speed pulse width modulation for motor drives or Class D audio amplifiers, and when used in pairs, they can provide full bridge drive for bi-directional control.
With TTL-compatible units, this device will either source or sink up to 5A of peak current with interlock protection to insure that source and sink cannot be on simultaneously. Additional protection is provided by thermal shutdown of the source output if the chip temperature rises above 160°C. High speed internal commutating diodes are also included
Supply Voltage (VS)
SG1635/SG3635 .............................................................. 40V
Input Voltage
Enable and Pulse .............................................................. 7V
Source/Sink Output Current
Contiuous.......................................................................... 3A
Peak .................................................................................. 5A
Operating Junction Temperature
Hermetic (R - Package) ............................................... 150°C
Plastic (P - Package) ................................................... 150°C
Storage Temperature Range ....................... -65°C to 150°C
Lead Temperature (Soldering, 10 Seconds) ................ 300°C
SG3635
PDF/DataSheet Download
The SG1626, 2626, SG3626 is a dual inverting monolithic high speed driver that is pin for pin compatible with the DS0026, TSC426 and ICL7667. This device utilizes high voltage Schottky logic to convert TTL signals to high speed outputs up to 18V. The totem p...
The SG3549is an analog latch device with digital reset. It was specifically designed to provide pulse-by-pulse current limiting for switch-mode power supply systems, but many other application are also feasible. Its function is to provide a latching switch a...
The SG3548 is an integrated circuit capable of monitoring up to four positive DC supply voltages simultaneously for overvoltage and undervoltage fault conditions. An on-chip inverting op amp also allows monitoring one negative DC voltage. The fault tolerance...
The SG3546 is an undervoltage sensing circuit specifically designed for use as a reset controller in 3.3Vmicroprocessor-based applications. Its micropower operation makes SG3546 ideal for portable applications where extended battery life is required. The dev...

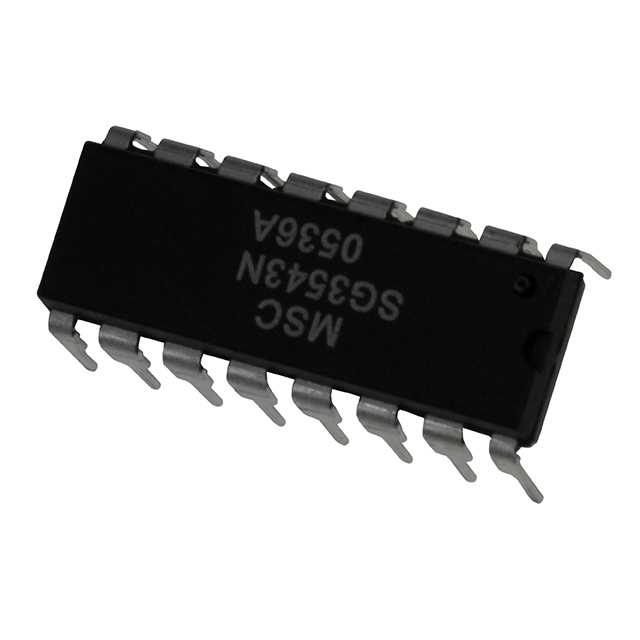

The SG3544 was designed to provide all the operational features of the SG1543/ 2543/3543 devices but with the added advantage of uncommitted inputs to the voltage sensing comparators. This allows monitoring of voltage levels less than 2.5 volts by dividing d...
