SG7905AT suppliers, SG7905AT price trend, SG7905AT PDF download, circuit diagram from SeekIC

Purchase SG7905AT, In-stock SG7905AT From SeekIC.

MFG:Microsemi-IPG Category:Integrated Circuits (ICs)

Five Points

Category: Integrated Circuits (ICs)

MFG: Microsemi-IPG

Descriptions: IC VOLTAGE REG NEG 5V TO-39

Price Break

1
25
100
500
1000
5000
10000

Unit Price

14.00000
12.00000
9.50000
8.75000
7.50000
6.75000
6.25000

Extended Price

14.00
300.00
950.00
4375.00
7500.00
33750.00
62500.00

(All prices are in USD) Prices for reference only

IC VOLTAGE REG NEG 5V TO-39

Technical/Catalog Information	SG7905AT
Vendor	Microsemi-IPG
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-39
Packaging	Bulk
Regulator Topology	Negative Fixed
Current - Output	100mA
Voltage - Output	-5V
Operating Temperature	-55°C ~ 150°C
Voltage - Input	-7.5 ~ -35 V
Number of Regulators	1
Current - Limit (Min)	500mA
Current Short Circuit (Isc)	600mA
Drawing Number	*
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	SG7905AT SG7905AT

SG7905AT
PDF/DataSheet Download

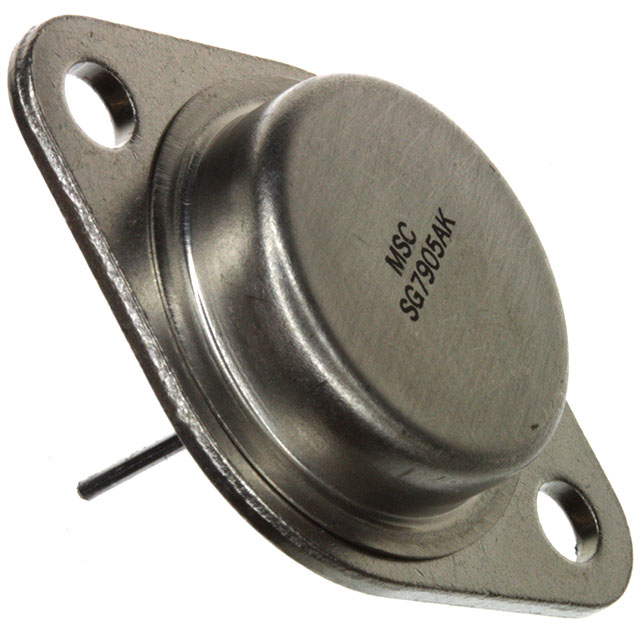

SG7905AK
