SGM2015

Features: ` Low Output Noise: 30VRMS typ(10Hz to 100KHz)` Ultra-Low Dropout Voltage: 250mV at 250mA output` Low 85A No-Load Supply Current` Low 160A Operating Supply Current at 250mA Output` High PSRR (73dB at 1KHz)` Thermal-Overload Protection` Output Current Limit` 10nA Logic-Controlled Shutdown...

product image

SGM2015 Picture
See larger image
SeekIC No. : 004489438 Detail

SGM2015: Features: ` Low Output Noise: 30VRMS typ(10Hz to 100KHz)` Ultra-Low Dropout Voltage: 250mV at 250mA output` Low 85A No-Load Supply Current` Low 160A Operating Supply Current at 250mA Output` High PS...

SGM2015 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SGM2015
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Output Noise: 30VRMS typ(10Hz to 100KHz)
` Ultra-Low Dropout Voltage: 250mV at 250mA output
` Low 85A No-Load Supply Current
` Low 160A Operating Supply Current at 250mA Output
` High PSRR (73dB at 1KHz)
` Thermal-Overload Protection
` Output Current Limit
` 10nA Logic-Controlled Shutdown
` Available in Multiple Output Voltage Versions Fixed Outputs of 1.5V, 1.8V, 2.5V, 2.8V, 2.85V, 3.0V, 3.3V


Application

·Cellular Telephones
·Cordless Telephones
·PHS Telephones
·PCMCIA Cards
·Modems
·MP3 Player
·Hand-Held Instruments
·Palmtop Computers
·Electronic Planners
·Portable/Battery-Powered Equipment

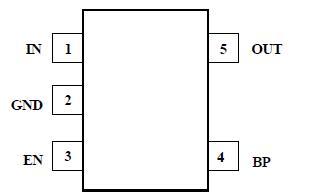

Pinout

Connection Diagram


Specifications

IN to GND.................................................................- 0.3V to +6V
Output Short-Circuit Duration ...........................................Infinite
EN to GND................................................................- 0.3V to +6V
OUT, BP/FB to GND......................................- 0.3V to (VIN + 0.3V)
Power Dissipation, PD @ TA = 25
SOT23-5 ..............................................................................0.4W
Package Thermal Resistance
SOT23-5, JA.................................................................. 250/W
Operating Temperature Range........................- 40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature.....................................- 65°C to +150°C
Lead Temperature (soldering, 10s)...................................260°C
ESD Susceptibility
HBM....................................................................................4000V
MM........................................................................................400V

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The SGM2015 series low-power, low-noise, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input and deliver up to 250mA. They are the perfect choice for low voltage, low power applications. An ultra low ground current(160A at 250mA output ) makes these part attractive for battery operated power systems. The SGM2015 series also offer ultra low dropout voltage (250mV at 250mA output) to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2015 series' ultra low output noise (30VRMS) and high PSRR. An external noise bypass capacitor connected to the device's BP pin can further reduce the noise level.

The output voltage of SGM2015 is preset to voltages in the range of 1.5V to 3.3V. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shutdown protection.Devices come in 5-pin SOT23 package.
