SGM4157

Features: − Voltage Operation : 1. 8 V to 5. 5 V− On-Resistance: 0.8 (TYP) at 4.5V− -3dB Bandwidth: 80 MHz− High Off-Isolation: 60dB at 1MHz− Rail-to-Rail Operation− Low Static Power− TTL/CMOS Compatible− Break-Before-Make Switching− Extended I...

product image

SGM4157 Picture
See larger image
SeekIC No. : 004489453 Detail

SGM4157: Features: − Voltage Operation : 1. 8 V to 5. 5 V− On-Resistance: 0.8 (TYP) at 4.5V− -3dB Bandwidth: 80 MHz− High Off-Isolation: 60dB at 1MHz− Rail-to-Rail OperationW...

SGM4157 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SGM4157
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

− Voltage Operation : 1. 8 V to 5. 5 V
− On-Resistance: 0.8 (TYP) at 4.5V
− -3dB Bandwidth: 80 MHz
− High Off-Isolation: 60dB at 1MHz
− Rail-to-Rail Operation
− Low Static Power
− TTL/CMOS Compatible
− Break-Before-Make Switching
− Extended Industrial Temperature Range: 40°C to 85°C
− Microsize Package


Application

Portable Instrumentation
Battery-Operated Equipment
Computer Peripherals
Cell Phones
PDAs
MP3s


Pinout

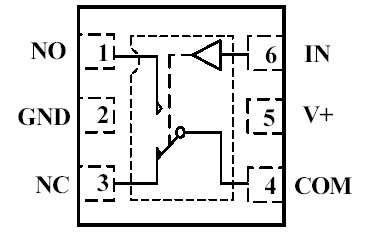

Connection Diagram


Specifications

V+ , IN to GND....................................................- 0.3V to +6V
Analog, Digital voltage range(1)............ - 0.3V to (V+ + 0.3V)
Continuous Current NO, NC, or COM..........................±200mA
Peak Current NO, NC, or COM.....................................±300mA
Operating Temperature Range....................... - 40°C to +85°C
Junction Temperature...................................................+150°C
Storage Temperature....................................- 65°C to +150°C
Lead Temperature (soldering, 10s)............................. +260°C
ESD(HBM)....................................................................3000V


Description

The SGM4157 is a single Low ON-Resistance(1), fast single-pole double-throw (SPDT) CMOS switch. It is designed for low operating voltage, high current switching of speaker output for cell phone applications.

The SGM4157 can handle a balanced microphone/speaker/ringtone generator in a monophone mode.

The device contains a break−before−make (BBM) feature. The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage. SGM4157 is available in a DFN-6 package.
