Features: Voltage Operation: 1. 8V to 4.2VOn-Resistance: 0.8 (TYP)-3dB Bandwidth: 100MHzHigh Off-Isolation: -50dB at 10MHzRail-to-Rail OperationLow Static PowerTTL/CMOS CompatibleBreak-Before-Make SwitchingExtended Industrial Temperature Range: -40°C to +85°CMicrosize PackageApplicationPortable In...
SGM4157YC: Features: Voltage Operation: 1. 8V to 4.2VOn-Resistance: 0.8 (TYP)-3dB Bandwidth: 100MHzHigh Off-Isolation: -50dB at 10MHzRail-to-Rail OperationLow Static PowerTTL/CMOS CompatibleBreak-Before-Make S...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
V+ , IN to GND............................................................... 0V to 4.6V
Analog, Digital voltage range(1)................... -0.3V to (V+ + 0.3V)
Continuous Current NO, NC, or COM................................±200mA
Peak Current NO, NC, or COM...........................................±350mA
Operating Temperature Range..............................- 40°C to +85°C
Junction Temperature...........................................................150°C
Storage Temperature............................................ -65°C to +150°C
Lead Temperature (soldering, 10s)...................................... 260°C
ESD Susceptibility
HBM......................................................................................... 4000V
MM............................................................................................. 400V
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
(1) Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.

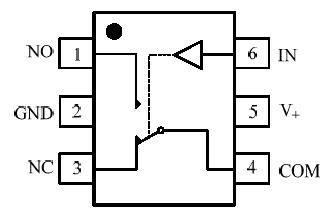

The SGM4157YC is a single Low ON-Resistance (0.8), fast single-pole double-throw (SPDT) CMOS switch. It is designed for low operating voltage, high current switching of speaker output for cell phone applications. The SGM4157YC can handle a balanced microphone/ speaker/ring tone generator in a monophone mode. The device contains a break−before−make (BBM) feature.
The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage.SGM4157YC is available in SC70-6 package.
