SH150S-0.36-375, US $ 1.07-1.99, SH150S-0.36-375 DataSheet download, circuit diagram from SeekIC.com

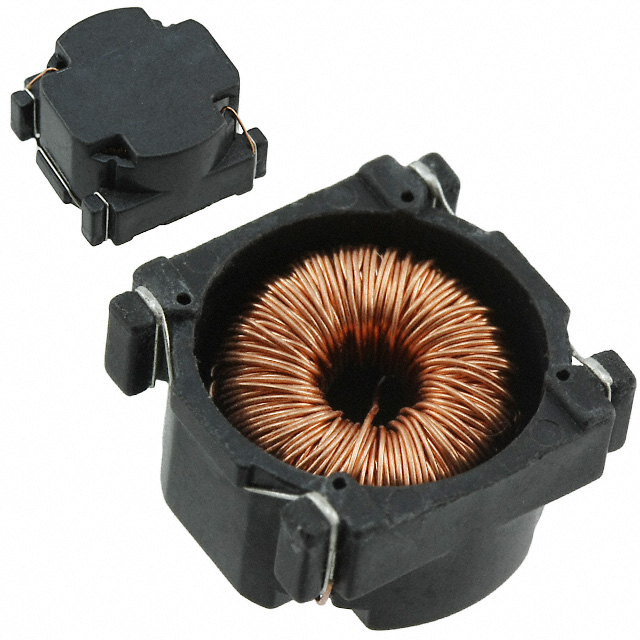

See larger image

SeekIC No. : 003455494 Detail

SH150S-0.36-375: INDUCTOR 375UH .36A 150KHZ SMD

SH150S-0.36-375 Data Sheet

US $ 1.07~1.99 / Piece | Get Latest Price

Part Number:: SH150S-0.36-375
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250

Unit Price
$1.99
$1.9
$1.8
$1.54
$1.23
$1.07

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SH150C-1.5-250 evaluate
US $1.18 - 1.18 / Piece

INDUCTOR 250UH 1.50A 150KHZ CLP
SH150C-1.81-168 evaluate
US $1.23 - 1.23 / Piece

INDUCTOR 168UH 1.81A 150KHZ CLP
SH150C-2.22-114 evaluate
US $.89 - 2.33 / Piece

INDUCTOR 114UH 2.22A 150KHZ CLP

Product Details

Quick Details

Series:	SH150	Manufacturer:	AlfaMag Electronics, LLC
Inductance:	375µH	Current:	360mA
Current - Saturation:	-	Current - Temperature Rise:	-
Supply Current :	17 mA	Type:	Toroidal
Tolerance:	±20%	Shielding:	Unshielded
DC Resistance (DCR):	1.3 Ohm	Q @ Freq:	-
Frequency - Self Resonant:	-	Material - Core:	-
Package / Case:	0.559" L x 0.551" W x 0.327" H (14.20mm x 14.00mm x 8.30mm)	Mounting Type:	Surface Mount

Description

Current - Saturation: -
Current - Temperature Rise: -
Shielding: Unshielded
Material - Core: -
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Q @ Freq: -
Current: 360mA
Tolerance: ±20%
Frequency - Self Resonant: -
DC Resistance (DCR): 1.3 Ohm
Type: Toroidal
Inductance: 375µH
Series: SH150
Manufacturer: AlfaMag Electronics, LLC
Package / Case: 0.559" L x 0.551" W x 0.327" H (14.20mm x 14.00mm x 8.30mm)

Parameters:

Technical/Catalog Information	SH150S-0.36-375
Vendor	Alfamag Electronics LLC (VA)
Category	Inductors, Coils, Chokes
Inductance	375H
Tolerance	±20%
Package / Case	0.559" L x 0.551" W x 0.327" H (14.20mm x 14.00mm x 8.30mm)
Packaging	Digi-Reel?
Type	Toroidal
Current	360mA
Mounting Type	Surface Mount
Q @ Freq	-
Self Resonant Freq	-
DC Resistance (DCR)	1.300 Ohm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SH150S 0 36 375 SH150S036375 TE2209DKR ND TE2209DKRND TE2209DKR
