SH50S-0.9-267, US $ 1.09-1.09, SH50S-0.9-267 DataSheet download, circuit diagram from SeekIC.com

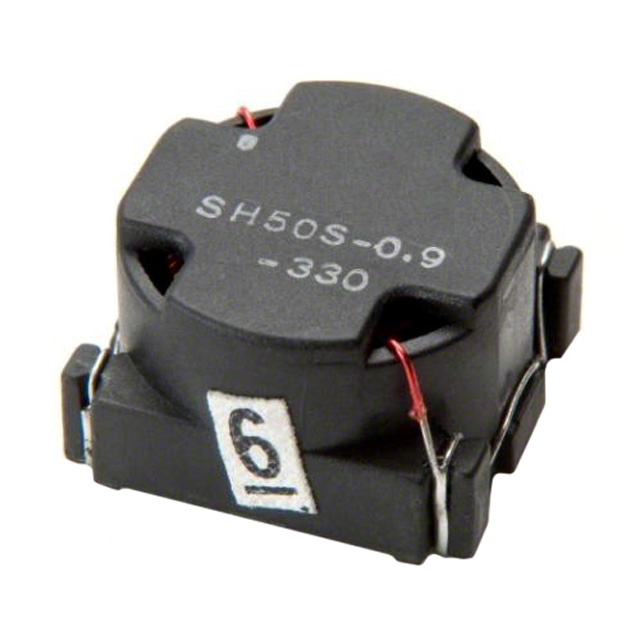

See larger image

SeekIC No. : 003453675 Detail

SH50S-0.9-267: INDUCTOR 267UH .90A 50KHZ SMD

SH50S-0.9-267 Data Sheet

US $ 1.09~1.09 / Piece | Get Latest Price

Part Number:: SH50S-0.9-267
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~300

Unit Price
$1.09

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SH5010000JS03 evaluate
Wirewound Resistors - Through Hole SH 50 1K 5% BA10 e1
SH5010001JS03 evaluate
Wirewound Resistors - Chassis Mount SH 50 10K 5% BA10 e1
SH50100R0JS03 evaluate
Wirewound Resistors - Through Hole SH 50 100U 5% BA10 e1

Product Details

Quick Details

Series:	SH50	Manufacturer:	AlfaMag Electronics, LLC
Inductance:	267µH	Current:	900mA
Current - Saturation:	-	Current - Temperature Rise:	-
Type:	Toroidal	Maximum Operating Temperature :	+ 140 C
Tolerance:	±20%	Shielding:	Unshielded
DC Resistance (DCR):	180 mOhm Max	Q @ Freq:	-
Frequency - Self Resonant:	-	Material - Core:	-
Package / Case:	0.957" L x 0.925" W x 0.445" H (24.30mm x 23.50mm x 11.30mm)	Mounting Type:	Surface Mount

Description

Current - Saturation: -
Current - Temperature Rise: -
Shielding: Unshielded
Material - Core: -
Mounting Type: Surface Mount
DC Resistance (DCR): 180 mOhm Max
Q @ Freq: -
Current: 900mA
Tolerance: ±20%
Frequency - Self Resonant: -
Packaging: Tape & Reel (TR)
Type: Toroidal
Manufacturer: AlfaMag Electronics, LLC
Series: SH50
Package / Case: 0.957" L x 0.925" W x 0.445" H (24.30mm x 23.50mm x 11.30mm)
Inductance: 267µH

Parameters:

Technical/Catalog Information	SH50S-0.9-267
Vendor	AlfaMag Electronics, LLC
Category	Inductors, Coils, Chokes
Inductance	267H
Tolerance	±20%
Package / Case	0.957" L x 0.925" W x 0.445" H (24.30mm x 23.50mm x 11.30mm)
Packaging	Tape & Reel (TR)
Type	Toroidal
Current	900mA
Mounting Type	Surface Mount
Q @ Freq	-
Self Resonant Freq	-
DC Resistance (DCR)	180.0 mOhm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SH50S 0 9 267 SH50S09267
