Product Details

Description



Features:

`SH6610D-Based Single-Chip 4-bit Micro-Controller
`ROM: 24K X 16 bits
`RAM: 5784 X 4 bits
- 48 bytes System Control Register
- 5536 bytes Data Memory
- 200 bytes LCD RAM
`Operation Voltage: 2.4V - 3.6V
`23 CMOS Bi-directional I/O pads (15 shared with LCD Segments)
`12 Segments of LCD Shared with Scan Output port
`8-Level Stack (including interrupts)
`Two 8-bit Timer/Counter
`Powerful Interrupt Sources
- External Interrupt (PORTA.0 Rising/Falling edge)
- Timer0 Interrupt
- Timer1 Interrupt
- External Interrupts: PORTB, PORTC and PORTD
(Falling edge)
`LCD Driver
- 50 Seg X 16 Com (1/16 duty 1/4 bias or 1/5 bias)
- 50 Seg X 8 Com (1/8 duty 1/4 bias or 1/5 bias)
`Oscillator (Code Option) OSC
- Crystal Oscillator 32.768kHz
- RC Oscillator: 262kHz OSCX
- Ceramic Resonator 3.58MHz/Crystal Oscillator 3.579545MHz
- RC oscillator 1.8MHz
`Instruction Cycle Time
- 122.07s for 32.768kHz crystal
- 15.27s for 262 kHz RC
- 2.22s for 1.8 MHz RC
- 1.1s for 3.58MHz ceramic
`Two Low Power Operation Modes: HALT and STOP
`Warm-up Timer for Power-On Reset (POR)
`Watchdog Timer
`DTMF/FSK Generator
`Available In CHIP FORM

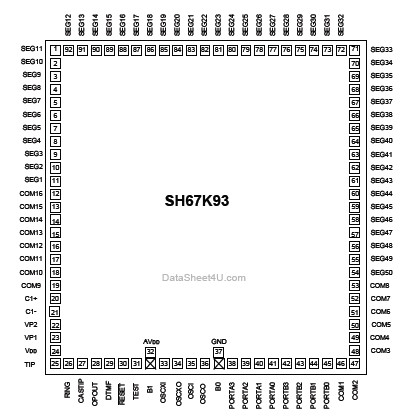

Pinout

Connection Diagram


Specifications

DC Supply Voltage . . . . . . . . . .  . . . . .-0.3V to +3.6V
Input Voltage . . . . . . . . . . . . . . .-0.3V to VDD + 0.3V
Operating Ambient Temperature . . . . -10 to +70
Storage Temperature . . . . . . . . . . . .-55 to +125
*Comments: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to this device. These are stress ratings only. Functional operation of this device at these or any other conditions above those indicated in the operational sections of this specification is not implied or intended. Exposure to the absolute maximum rating conditions for extended periods may affect device reliability.


Description

SH67K93 is a single-chip 4-bit micro-controller. The device integrates a SH6610D CPU core, RAM, ROM, Timer, LCD driver, I/O port, DTMF/FSK Generator and FSK/DTMF/CAS decoder. This SH67K93 chip builds in a dual-oscillator to enhance the total chip performance. The device is suitable for TypeI/II CID cord phone.
