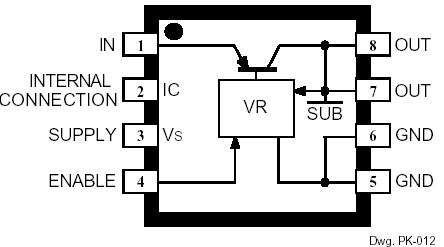

Features: `1 A Output Current`LSTTL/CMOS-Compatible On/Off Control Less Than 1 µA Sleep Current`Internal Foldback Overcurrent Limiting`Internal Thermal Protection`Surface-Mount PackagePinoutSpecificationsInput Voltage, VI ............................... 16 VSupply Voltage, VS ................
SI-3018LSA: Features: `1 A Output Current`LSTTL/CMOS-Compatible On/Off Control Less Than 1 µA Sleep Current`Internal Foldback Overcurrent Limiting`Internal Thermal Protection`Surface-Mount PackagePinout...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Input Voltage, VI ............................... 16 V
Supply Voltage, VS ............................ 16 V
Continuous Output Current, IO ........ 1.0 A*
Logic Input Voltage, VE ........................ VS
Package Power Dissipation,
PD ............................................ See Graph
Output Junction Temperature,
TJ .............................................. +150°C†
Operating Temperature Range,
TA ............................... -30°C to +100°C
Storage Temperature Range,
Tstg ............................. -30°C to +150°C
* Output current rating may be limited by duty cycle, ambient temperature, and heat sinking. Under any set of conditions, do not exceed the specified current rating or a junction temperature of 150°C.
† Fault conditions that produce excessive junction temperature will activate the device's thermal protection circuitry. These conditions can be tolerated but should be avoided.
The SI-3018LSA is designed to meet the requirement for increased integration and reliability in low-voltage, high-current, linear regulator applications such as personal computers (PCs) and set-top boxes. Each device incorporates a monolithic low-level reference and control circuit with a high-current pnp transistor in a power multi-chip module (PMCMTM). Regulated output voltages of 2.5V or 3.3V are also available.
The high-current pass element provides a low dropout voltage with output current to 1A. Regulator accuracy of ±2% and excellent temperature characteristics are provided. The logic-compatible ENABLE input gives the designer complete control over power up, power down, and standby or sleep.
The SI-3018LSA is designed to meet the requirement for increased integration and reliability in low-voltage, high-current, linear regulator applications such as personal computers (PCs) and set-top boxes. SI-3018LSA incorporates a monolithic low-level reference and control circuit with a high-current pnp transistor in a power multi-chip module (PMCM™). Regulated output voltages of 2.5 V or 3.3 V are also available.
The high-current pass element SI-3018LSA provides an output current to 1 A. Regulator accuracy of ±2 % and excellent temperature characteristics are provided. The logic-compatible ENABLE input gives the designer complete control over power up, power down, and standby or sleep.
SI-3018LSA is supplied in a fully molded 8-lead miniature surface-mount package (tape and reel) with enhanced power-dissipating qualities. They are rated for continuous operation between -30°C and +100°C.
