SII161A

Features: • Low Power: 3.3V core operation• Time staggered data output for reduced ground bounce• Sync Detect: for Plug & Display Hot Plugging • Cable Distance Support: over 5m with twisted-pair, fiber-optics ready• Compliant with DVI 1.0 (DVI is backwards compat...

product image

SII161A Picture
See larger image
SeekIC No. : 004491225 Detail

SII161A: Features: • Low Power: 3.3V core operation• Time staggered data output for reduced ground bounce• Sync Detect: for Plug & Display Hot Plugging • Cable Distance Support: ...

SII161A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SII161A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Power: 3.3V core operation
• Time staggered data output for reduced ground bounce
• Sync Detect: for Plug & Display "Hot Plugging"
• Cable Distance Support: over 5m with twisted-pair, fiber-optics ready
• Compliant with DVI 1.0 (DVI is backwards compatible with VESA® P&DTM and DFP)
• Supports Dual-Link operation up to 330 Megapixels/ second

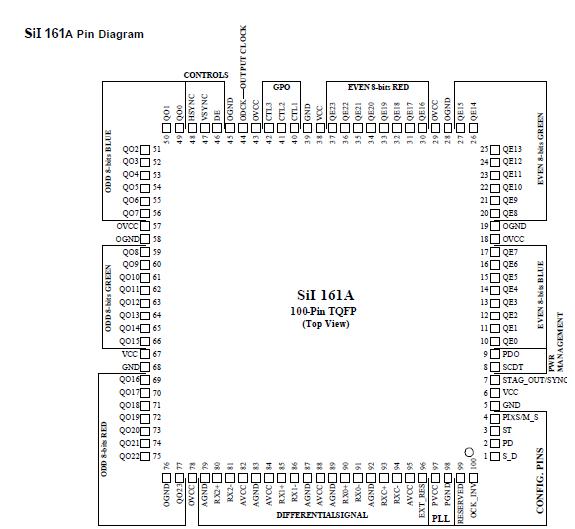

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Min
Typ
Max
Units
VCC
 Supply Voltage 3.3V
-0.3
4.0
V
VI
 Input Voltage
-0.3
VCC+ 0.3
V
VO
 Output Voltage
-0.3
VCC+ 0.3
V
TA
 Ambient Temperature (with power applied)
-25
105
TSTG
 Storage Temperature
-65
150
JA
 Thermal Resistance (Junction to Ambient)
21
/W
Notes: 1 Permanent device damage may occur if absolute maximum conditions are exceeded.
            2 Functional operation should be restricted to the conditions described under Normal Operating Conditions.


Description

The SII161A SiI 161A receiver uses PanelLink Digital technology to support high resolution displays up to UXGA. The SiI 161A receiver supports up to true color panels (24 bit/pixel, 16.7M colors) in 1 or 2 pixels/clock mode. In addition, the SII161A receiver data output is time staggered to reduce ground bounce that affects EMI. Since all PanelLink products are designed on scaleable CMOS architecture to support future performance requirements while maintaining the same logical interface, system designers can be assured that the interface will be fixed through a number of technology and performance generations.

SII161A PanelLink Digital technology simplifies PC and display interface design by resolving many of the system level issues associated with high-speed mixed signal design, providing the system designer with a digital interface solution that is quicker to market and lower in cost.
