SIL20C2

Features: • 20 A current rating• Input voltage range: 4.5-13.8 V• Output voltage: 0.59-5.1 V• Industry leading value• Cost optimized design• E Excellent transient response• Output enable• Output voltage adjustability• Pathway for future upgrade...

product image

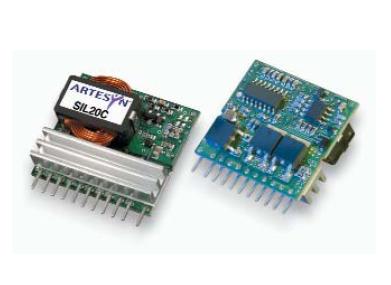

SIL20C2 Picture
See larger image
SeekIC No. : 004491248 Detail

SIL20C2: Features: • 20 A current rating• Input voltage range: 4.5-13.8 V• Output voltage: 0.59-5.1 V• Industry leading value• Cost optimized design• E Excellent transient...

SIL20C2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SIL20C2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 20 A current rating
• Input voltage range: 4.5-13.8 V
• Output voltage: 0.59-5.1 V
• Industry leading value
• Cost optimized design
• E Excellent transient response
• Output enable
• Output voltage adjustability
• Pathway for future upgrades
• Supports silicon voltage migration
• Resulting in reduced design-in and qual time
• Current sink capability
• R RoHS compliant




Specifications

  • Total Max Power: 100 W
  • Total Max Current: 20 A
  • Input Voltage: 4.5 V to 13.8 V
  • Output Voltage: 0.59 V to 5.1 V
  • Outputs: Single
  • Size (L x W x H): 1.200" x 0.610" x 0.482"
  • Warranty: 2 years
  • Operating Temperature: 0 to +70 oC





    • Description

    The SIL20C2 series is a new high density, open frame, non-isolated converter for space sensitive applications. This model has a wide input range (4.5-13.8 Vdc) and offers a wide 0.59-5.1 V output voltage range with 20 A load capability. An external resistor adjusts the output voltage from its pre-set value of 0.59 V to any value up to the 5 V maximum. Typical efficiencies for the models are 93% for the 12 V input version. The SIL20C2 series offers remote ON/OFF and over-current protection as standard.
