SJ-3504

CONN 3.5MM RT ANGLE JACK PCB MNT

product image

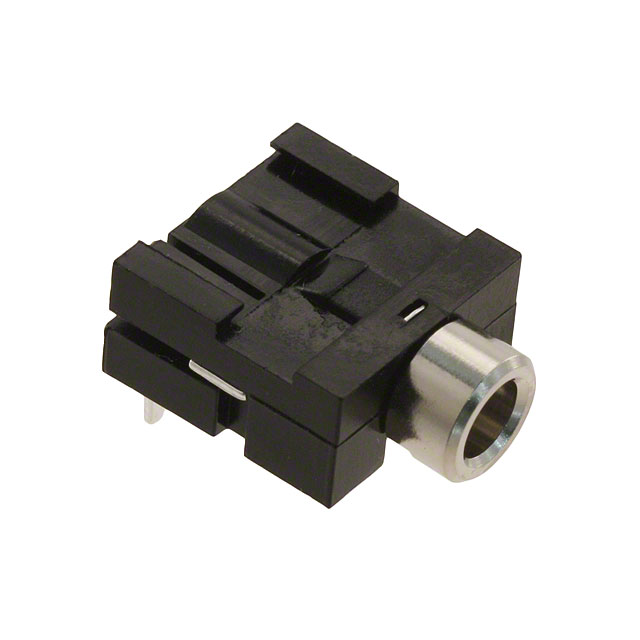

SJ-3504 Picture
SeekIC No. : 003016706 Detail

SJ-3504: CONN 3.5MM RT ANGLE JACK PCB MNT

floor Price/Ceiling Price

US $ .62~1.54 / Piece | Get Latest Price
Part Number:
SJ-3504
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.54
  • $1.28
  • $.95
  • $.76
  • $.69
  • $.62
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack Gender: Female
Signal Lines: Stereo Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time : 20 ns Number of Positions/Contacts: 3 Conductors, 4 Contacts
Internal Switch(s): Single Switch Mounting Type: Through Hole, Right Angle
Termination: Solder Shielding: Unshielded
Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Internal Switch(s): Single Switch
Termination: Solder
Shielding: Unshielded
Features: -
Signal Lines: Stereo
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Mounting Type: Through Hole, Right Angle
Color - Contact: Silver
Number of Positions/Contacts: 3 Conductors, 4 Contacts


Specifications

  • rating: 12 Vdc @ 1A
  • contact resistance: 10~20mΩ MAX
  • insulation resistance: 50MΩ MIN @ 500 Vdc
  • voltage withstand: 250V AC RMS for 1 minute
  • flammability: UL94V-0 rated
  • life: 10,000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



  • Parameters:

    Technical/Catalog InformationSJ-3504
    VendorCUI Inc
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter3.50mm (1/8", Mini Plug)
    Signal LinesStereo
    Number of Positions/Contacts3 Conductors, 4 Contacts
    Mounting TypeThrough Hole, Right Angle
    FeaturesInternal Switch
    ColorBlack
    TerminationSolder
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names SJ 3504
    SJ3504
    CP 3504 ND
    CP3504ND
    CP-3504
