SK10E131

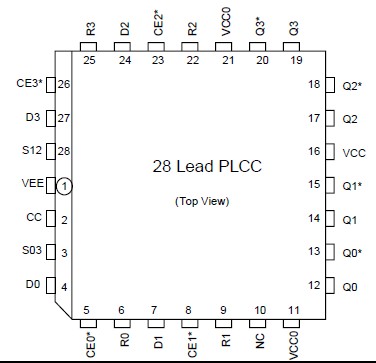

The SK10E/100E131 is a Quad master-slave D-type flipflop with differential outputs. Each flip-flop may be clocked separately by holding Common Clock (CC) LOW and using the Clock Enable (CE*) inputs for clocking. Common clocking is achieved by holding the CE inputs LOW and using CC to clock all four flip-flops. In this case, the CE* inputs perform the function of controlling the common clock to each flip-flop.

Individual asynchronous resets of SK10E/100E131 are provided (R). Asynchronous set controls (S) are ganged together in pairs, with the pairing chosen to reflect physical chip symmetry.

Data of SK10E/100E131 enters the master when both CC and CE* are LOW, and transfers to the slave when either CC or CE (or both) go HIGH.
