SL15100

Features: ·􀁸 Low power dissipation- 7.7mA-typ at 66MHz and VDD=3.3V- 6.8mA-typ at 66MHz and VDD=2.5V·􀁸 Wide 2.5V to 3.3V +/-10% power supply range·􀁸 Programmable outputs from 3 to 200MHz·􀁸 Low Jitter- 110ps at 66MHz·􀁸 Programmable Center or Down Spread ...

product image

SL15100 Picture
See larger image
SeekIC No. : 004492440 Detail

SL15100: Features: ·􀁸 Low power dissipation- 7.7mA-typ at 66MHz and VDD=3.3V- 6.8mA-typ at 66MHz and VDD=2.5V·􀁸 Wide 2.5V to 3.3V +/-10% power supply range·􀁸 Programmable outputs f...

SL15100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL15100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·􀁸 Low power dissipation
- 7.7mA-typ at 66MHz and VDD=3.3V
- 6.8mA-typ at 66MHz and VDD=2.5V
·􀁸 Wide 2.5V to 3.3V +/-10% power supply range
·􀁸 Programmable outputs from 3 to 200MHz
·􀁸 Low Jitter
- 110ps at 66MHz
·􀁸 Programmable Center or Down Spread Modulation from 0.25 to 5.0%
·􀁸 8 to 48 MHz external crystal range
·􀁸 8 to 166 MHz external clock range
·􀁸 Integrated internal voltage regulator
·􀁸 Programmable PD#/OE/SSON#/FS functions
·􀁸 Programmable CL at XIN and XOUT pins
·􀁸 Programmable output rise and fall times
·􀁸 Programmable modulation frequency from 30 to 120 kHz


Application

·􀁸 Printers, MFPs
·􀁸 Digital Copiers
·􀁸 NBPCs and LCD Monitors
·􀁸 Routers, Servers and Switchers
·􀁸 HDTV and DVD-R/W


Pinout

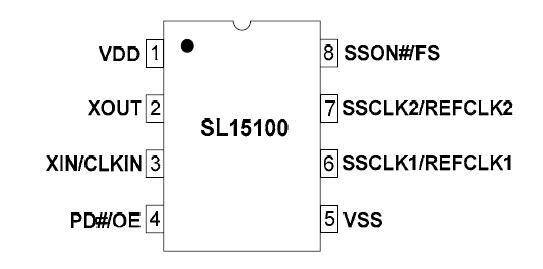

Connection Diagram


Specifications

Description Condition Min Max Unit
Supply voltage, VDD   -0.5 4.6 V
All Inputs and Outputs   -0.5 VDD+0.5 V
Ambient Operating Temperature In operation, C-Grade 0 85 °C
Ambient Operating Temperature In operation, I-Grade -40 85 °C
Storage Temperature No power is applied -65 150 °C
Junction Temperature In operation, power is applied - 125 °C
Soldering Temperature   - 260 °C
ESD Rating (Human Body Model) JEDEC22-A114D -4,000 4,000 V
ESD Rating (Charge Device Model) JEDEC22-C101C -1,500 1,500 V
ESD Rating (Machine Model) JEDEC22-A115D -250 250 V
Latch-up 125°C -200 200 mA



Description

The SL15100 a programmable low power Spread Spectrum Clock Generator (SSCG) used for reducing Electromagnetic Interference (EMI). The product is designed using SpectraLinear proprietary EProClock™ programmable phase-locked loop (PLL) and Spread Spectrum Clock (SSC) technology to synthesize and modulate the input clock. The modulated clock of SL15100 can significantly reduce the measured EMI levels, and leading to the compliance with regulatory agency requirements.

The output clock frequency, Spread %, output rise and fall times, crystal load, modulation frequency and PD#/OE/SSON#/FS functions can be programmed to meet the needs of wide range of applications. The SL15100 operates from 2.5V to 3.3V power supply voltage range.The product is offered in 8-pin TSSOP package with commercial and industrial grades.

Refer to SL15101 for up to four (4) programmable clock outputs and SL15L100/101 Programmable SSCG products for 1.8V power supply operation.
