SL23EP09NZ

Features: DC to 220 MHz operating frequency range Low output clock skew: 70ps-typ Low part-to-part output skew: 100 ps-typ 3.3V to 2.5V operation supply voltage range Low power dissipation: - 9 mA-typ at 33MHz - 11 mA-typ at 66MHz - 15 mA-typ at 166MHz One input to nine (9) output fanout buffer d...

product image

SL23EP09NZ Picture
See larger image
SeekIC No. : 004492490 Detail

SL23EP09NZ: Features: DC to 220 MHz operating frequency range Low output clock skew: 70ps-typ Low part-to-part output skew: 100 ps-typ 3.3V to 2.5V operation supply voltage range Low power dissipation: - 9 mA-...

SL23EP09NZ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL23EP09NZ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  DC to 220 MHz operating frequency range
  Low output clock skew: 70ps-typ
  Low part-to-part output skew: 100 ps-typ
  3.3V to 2.5V operation supply voltage range
  Low power dissipation:
  - 9 mA-typ at 33MHz
  - 11 mA-typ at 66MHz
  - 15 mA-typ at 166MHz
  One input to nine (9) output fanout buffer drivers
  Available in 16-pin SOIC package
  Available in Commercial and Industrial grades
 Available in Lead (Pb) free package


Application

General Purpose PCI/PCI-X Clock Buffer
Printers, MFPs and Digital Copiers
PCs and Work Stations
Routers, Switchers and Servers
Datacom and Telecom
 High-Speed Digital Embeded Systems


Pinout

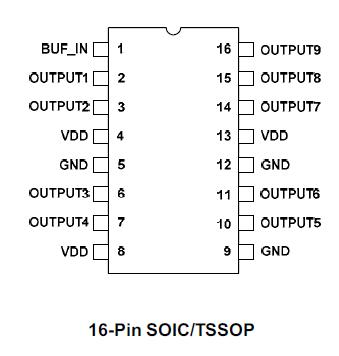

Connection Diagram


Specifications

Description Condition
Min
Max
Unit
Supply voltage, VDD
-0.5
4.6
V
All Inputs and Outputs
-0.5
VDD+0.5
V
Ambient Operating Temperature In operation, C-Grade
0
70
°C
Ambient Operating Temperature In operation, I-Grade
-40
85
°C
Storage Temperature No power is applied
-65
150
°C
Junction Temperature In operation, power is applied
125
°C
Soldering Temperature
260
°C
ESD Rating (Human Body Model) MIL-STD-883, Method 3015
2000
V



Description

The SL23EP09NZ is a low skew, jitter and power fanout buffer designed to produce up to nine (9) clock outputs from one (1) reference input clock, for high speed clock distribution.

The SL23EP09NZ products operate from DC to 140MHz. Refer to SL2309NZ product for DC to 140MHz-max frequency range. Also refer to SL2304NZ or SL23EP04NZ products for 1:4 clock fanout buffers from 2.5V to 3.3V power supply and DC to 220MHZ frequency range.
