Features:

·1.3GHz Bandwidth (-3dB)
·Balanced IF limiting
·3ns Rise Times/5ns Fall Times (six stages)
· 20ns Pulse Handling (six stages)
·Temperature Stabilised
·Surface Mountable


Application

· Ultra Wideband Log Receivers
· Channelised Receivers
· Monopulse Applications


Pinout

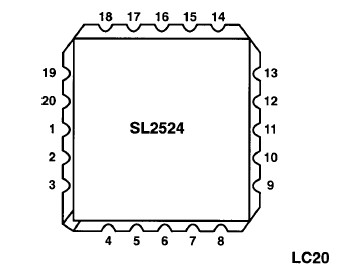

Connection Diagram


Specifications

Supply Voltage (VCC above VEE) ...+7.0V
Storage temperature... -65°C to +150°C
Operating temperature range
SL2524/B/LC........ -40°C to +85°C
SL2524/C/HP ........-30°C to +85°C
Junction temperature - LC.....20 +175°C
                                  - HP.....20 +150°C
Applied DC voltage to RF input .±0.4V (between RF I/Ppins)
Applied RF power to RF input ......+15dBm
Value of RSET resistors NOT less than... 180W
Thermal resistance:-
Die to case -LC ............20 28°C/W
                   - HP............20 20°C/W
Die to ambient - LC...........20 73°C/W
                      - HP............20 82°C/W


Description

The SL2524 is a pin compatible replacement for the SL2521 and SL2522 series of log amplifiers, and exhibits a superior stability performance. The amplifier is a successive detection type which provides linear gain and accurate logarithmic signal compression over a wide bandwidth. The two  stages can be operated independently.

When six stages (three SL2524s) are cascaded the strip can be used for IFs between 30-650MHz whilst achieving greater than 65dB dynamic range with a log accuracy of <±1.0dB. The balanced limited output also offers accurate phase information with input amplitude.
