Features:

• Single chip mixer/oscillator PLL combination for multi band tuner for DTT applications
• Each mixer oscillator band optimized for wide dynamic range
• RF input stages allow for either single-ended or differential drive
• PLL frequency synthesizer designed for low phase noise performance
• Broadband output level detect with onset adjust
• PLL frequency synthesizer compatible with standard digital terrestrial offsets
• Four integrated switching ports
• I2C fast mode compliant
• ESD protection (Normal ESD handling procedures should be observed)


Application

• Terrestrial digital receiver systems
• Terrestrial analogue receiver systems
• Cable receiver systems
• Data communications systems


Pinout

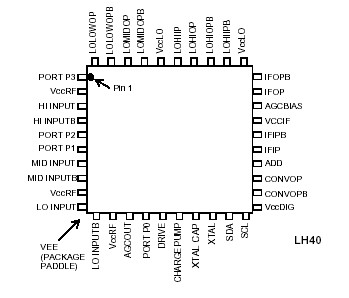

Connection Diagram


Specifications

Parameter
Value
Units
Conditions
Min
Max
Supply voltages VCC
RF input voltage
RF input DC offset
LO input DC offset
IF-OP-SEL input DC offset
IF outputs 1 and 2 DC offset
AGC Control input DC offset
Storage temperature
Junction temperature
MP16 thermal resistance
Chip to ambient
Chip to case
Power consumption at VCC=5.25V
ESD protection

-0.3


-0.3


-55


1

6
117


Vcc+0.3
20
150
125
27
1

V


dBµV

V
mA


/W

W
kV

Transient condition only.




Power applied.

Package paddle soldered to ground.


Mil-std 883B method 3015 cat1




Description

The SL2610 is a mixer oscillator intended primarily for application in all band tuners, where it performs image reject downconversion of the RF channel to a standard 36 MHz or 44 MHz IF.

Each band consists of a low noise preamplifier/mixer and local oscillator with an external varactor tuned tank. The band outputs of SL2610 share a common low impedance SAWF driver stage.

Frequency selection of SL2610 is controlled by the on-board I2C bus frequency synthesizer. This block also controls four general purpose switching ports for selecting the prefilter/AGC stages.
