SL3522

Features: · 75dB Dynamic Range· Surface Mount SO Package· Adjustable Log Slope and Offset· 0dBm RF Limiting Output· 60dBm Limiting Range· 2V Video Output Range· Low Power (Typ. 1W)· Temperature Range (TCASE): -55°C to +125°CApplication· Ultra Wideband Log Receivers· Channelised and Monpulse Radar·...

product image

SL3522 Picture
See larger image
SeekIC No. : 004492522 Detail

SL3522: Features: · 75dB Dynamic Range· Surface Mount SO Package· Adjustable Log Slope and Offset· 0dBm RF Limiting Output· 60dBm Limiting Range· 2V Video Output Range· Low Power (Typ. 1W)· Temperature Rang...

SL3522 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL3522
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 75dB Dynamic Range
· Surface Mount SO Package
· Adjustable Log Slope and Offset
· 0dBm RF Limiting Output
· 60dBm Limiting Range
· 2V Video Output Range
· Low Power (Typ. 1W)
· Temperature Range (TCASE): -55°C to +125°C


Application

· Ultra Wideband Log Receivers
· Channelised and Monpulse Radar
· Instrumentation


Pinout

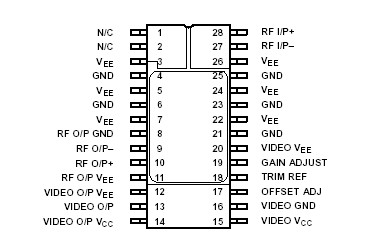

Connection Diagram


Specifications

Supply Voltage .. .. .. .. .. .. ±6.0V
Storage temperature  .. . -65°C to +175°C
Junction temperature  .. . .. . ..+175°C
Thermal resistance
Die-to-case  .. .. .. .. .. ..15.5°C/W
Die-to-ambient  .. ..  .. ....76.5°C/W
Applied DC voltage to RF input .. .. ±400mV
Applied RF power to RF input  .. . ..+15dBm


Description

The SL3522 is a monolithic seven stage successive detection logarithmic amplifier integrated circuit for use in the 100MHz to 500MHz frequency range. It features an onchip video amplifier with provision for external adjustment of log Slope and offset. It also features a balanced RF output. The SL3522 operates from supplies of ±5V.
