Product Details

Description



Features:

• Low voltage operation 1.24V
• Programmable output voltage from 1.24V to 16 V
• Voltage reference tolerance 1.0%, 2.0%
• Wide operating current range of 60uA to 30mA


Pinout

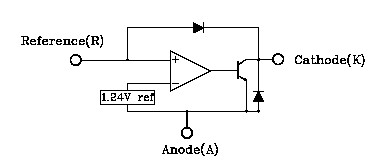

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Cathode to Anode voltage
VKA
18
V
Cathode current range
IKA
-20 ~+30
mA
Reference input current range
Iref
-0.05~+10
mA
Power dissipation
PD
500
mW
Operating temperature range
Topr
-40~+85
°C
Storage temperature range
Tstg
-55~+150
°C



Description

The SL432xM series are 3-terminal precision shunt regulators that are programmable over a wide voltage range of 1.24V to 16V with 1.0%, 2.0% tolerance. The SL432 series have a low dynamic impedance of 0.25Ω. These features make the SL432xM series an excellent replacement for zener diodes in numerous applications circuits that require a precision reference voltage.
