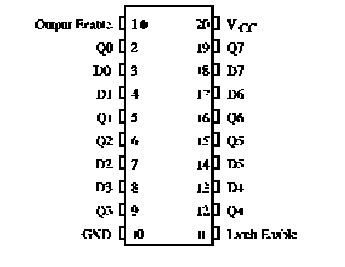

Features: · Outputs Directly Interface to CMOS, NMOS, and TTL· Operating Voltage Range: 2.0 to 6.0 V· Low Input Current: 1.0 mA· High Noise Immunity Characteristic of CMOS DevicesPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) -0.5 to +...
SL74HC533: Features: · Outputs Directly Interface to CMOS, NMOS, and TTL· Operating Voltage Range: 2.0 to 6.0 V· Low Input Current: 1.0 mA· High Noise Immunity Characteristic of CMOS DevicesPinoutSpecification...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

| Symbol | Parameter |
Value |
Unit |
| VCC | DC Supply Voltage (Referenced to GND) |
-0.5 to +7.0 |
V |
| VIN | DC Input Voltage (Referenced to GND) |
-1.5 to VCC +1.5 |
V |
| VOUT | DC Output Voltage (Referenced to GND) |
-0.5 to VCC +0.5 |
V |
| IIN | DC Input Current, per Pin |
±20 |
mA |
| IOUT | DC Output Current, per Pin |
±35 |
mA |
| Icc | DC Supply Current, VCC and GND Pins |
±75 |
mA |
| PD | Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ |
750 500 |
mW |
| Tstg | Storage Temperature |
-65 to +150 |
°C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 |
°C |
The SL74HC533 is identical in pinout to the LS/ALS533. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.
These latches appear transparent to data of the SL74HC533 (i.e., the outputs change asynchronously) when Latch Enable is high. The data appears as the outputs in inverted form. When Latch Enable goes low, data meeting the setup and hold time becomes latched.
The Output Enable input of the SL74HC533 does not affect the state of the latches, but when Output Enable is high, all device outputs are forced to the high-impedance state. Thus, data may be latched even when the outputs are not enabled.
