Features:

·  TTL/NMOS Compatible Input Levels
·  Outputs Directly Interface to CMOS, NMOS, and TTL
·  Operating Voltage Range: 4.5 to 5.5 V
·  Low Input Current: 1.0 mA


Pinout

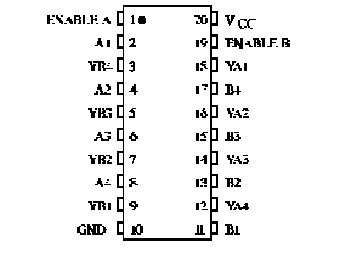

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC DC Supply Voltage (Referenced to GND)
-0.5 to +7.0
V
VIN DC Input Voltage (Referenced to GND)
-1.5 to VCC +1.5
V
VOUT DC Output Voltage (Referenced to GND)
-0.5 to VCC +0.5
V
IIN DC Input Current, per Pin
±20
mA
IOUT DC Output Current, per Pin
±35
mA
Icc DC Supply Current, VCC and GND Pins
±75
mA
PD Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
mW
Tstg Storage Temperature
-65 to +150
°C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
260
°C



Description

The SL74HCT241 is identical in pinout to the LS/ALS241. The SL74HCT241 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs.

This octal noninverting buffer/line driver/line receiver of the SL74HCT241 is designed to be used with 3-state memory address drivers, clock drivers, and other bus-oriented systems. The device has noninverting outputs and two output enables. Enable A is active-low and Enable B is active-high.
