Product Details

Description



Features:

`  8/16-bit microcomputer in 0.22 µm CMOS technology
`  Instruction set opcode compatible with standard
     SAB 8051 processor
`  Downward compatibility to existing SLE 66CxxxP
     products for existing masks without using the
     new features
`  Addressable memory up to 16 Mbyte
`  Additional enhanced instructions for direct
     physical memory access of >64kByte
    `  Typically saves up to 90 % code space and
          increases execution speed up to   80 %.
`  Dedicated, non-standard architecture with execution
     time 6 times faster than standard SAB 8051
     processor at same external clock. (Up to 18 times
     faster using internal frequency PLL x 3 compared to
     external clock).
`  136 Kbytes User ROM for application programs
`  32 Kbytes MicroSlim-EEPROM
`  4 Kbytes XRAM, 256 bytes internal RAM
`  Enhanced Memory Management and Protection
     Unit (MMU) with application and user defined
     segments
`  Dual Key Triple DES (DDES)
`  CC EAL5+ certification according to BSI-PP-0002
     planned
`  True Random Number Generator with Firmware test
     function
`  CRC Module
`  16-bit Interrupt Module
`  Code executions during E²-programming for faster
     personalization
`  EEPROM programming voltage generated on chip
`  Internal Clock with up to 33 MHz:
     Programmable internal frequency (PLL x1, x2, x3, x4
     and free running mode(s)).
`  Adjustable frequency according to available power
     or required performance
     `  Increased internal clock frequency for maximum
          performance
     `  Internal frequency is automatically adjusted to
          guarantee a given limited power
          consumption
`  Two 16-bit Autoreload Timer
`  Power saving sleep mode
`  Ext. Clock freq. 1 up to 7.5 MHz for int. Clock up to
     33 MHz
`  UART for handling serial interface in accordance
     with ISO/IEC 7816 part 3 supporting transmission
     protocols T=1 and T=0
`  Supply voltage range:1.8 V, 3.0 V, 5.0 V
`  Support of current consumption limits by GSM / UICC
     applications
      < 10 mA @  5.5 V
      <   6 mA @  3.3 V
      <   4 mA @  1.98 V
`  Operating Temperature range: -25 to +85°C
`  Storing temperature range: 40° to +125°C
`  ESD protection larger than 6 kV (HBM)

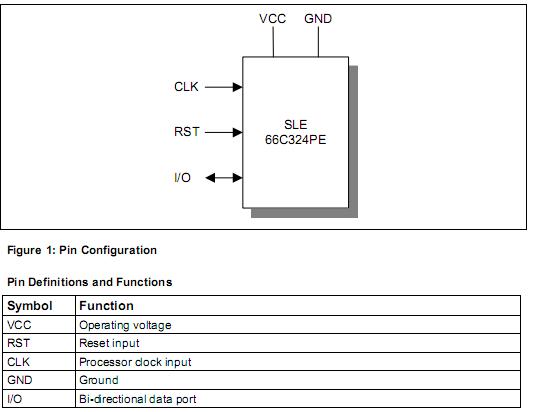

Pinout

Connection Diagram


Description

The  SLE66C324PE is one member of the  improved 66PE-series of Infineon Technologies. This high performance security controller is manufactured in advanced 0.22 µm CMOS technology. It is downward compatible to existing 66P controller derivatives. The well known ECO2000 8/16 bit CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features compared to existing 66P derivatives.
