SLE66C682PE

Features: ` 8/16-bit microcomputer in 0.22 µm CMOS technolog` Instruction set opcode compatible with standard SAB 8051 processor ` Downward compatibility to existing SLE 66Cxxx products for existing masks (without using the new features) ` Addressable memory up to 16 Mbyte ` Additional enh...

product image

SLE66C682PE Picture
See larger image
SeekIC No. : 004493163 Detail

SLE66C682PE: Features: ` 8/16-bit microcomputer in 0.22 µm CMOS technolog` Instruction set opcode compatible with standard SAB 8051 processor ` Downward compatibility to existing SLE 66Cxxx products for e...

SLE66C682PE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE66C682PE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  8/16-bit microcomputer in 0.22 µm CMOS technolog
`  Instruction set opcode compatible with standard
     SAB 8051 processor
`  Downward compatibility to existing SLE 66Cxxx
     products for existing masks (without using the
     new features)
`  Addressable memory up to 16 Mbyte
`  Additional enhanced instructions for direct
     physical memory access of >64kByte
    `  Typically saves up to 90 % code space and
          increases execution speed up to 80%.
`  Dedicated, non-standard architecture with executio
     time 6 times faster than standard SAB 8051
     processor at same external clock. (Up to 18 times
     faster using internal frequency PLL x 3 compared to
     external clock).
`  196 Kbytes User ROM for application programs
`  68 Kbytes MicroSlim-EEPROM for increased
     memory requirements in mobile applications
`  4 Kbytes XRAM, 256 bytes internal RAM
`  Enhanced Memory Management and Protection
     Unit (MMU) with application and user defined
     segments
`  Dual Key Triple DES (DDES)
`  True Random Number Generator with Firmware tes
     function
`  CRC Module
`  16-bit Interrupt Module
`  Code executions during E²-programming for faster
     personalization
`  EEPROM programming voltage generated on chip
 `  Internal Clock with up to 33 MHz:
      Programmable internal frequency (PLL x1, x2, x3, x4
      and free running mode(s)).
`  Adjustable internal frequency according to
     available power or required performance
     `  Increased internal frequency for maximum
          performance
     `  Internal frequency is automatically adjusted to
          guarantee a given limited power  consumption
`  Two 16-bit Autoreload Timer
`  Power saving sleep mode
`  Ext. Clock freq. 1 up to 7.5 MHz
`  UART for handling serial interface in accordance
     with ISO/IEC 7816 part 3 supporting transmission
     protocols T=1 and T=0
`  Supply voltage range:1.8 V, 3.0 V, 5.0 V
`  Support of current consumption limits by GSM / UICC
     applications
      < 10 mA @  5.5 V
      <   6 mA @  3.3 V
      <   4 mA @  1.98 V
`  Operating Temperature range: -25 to +85°C
`  Storing temperature range: 40° to +125°C
`  ESD protection larger than 6 kV (HBM)

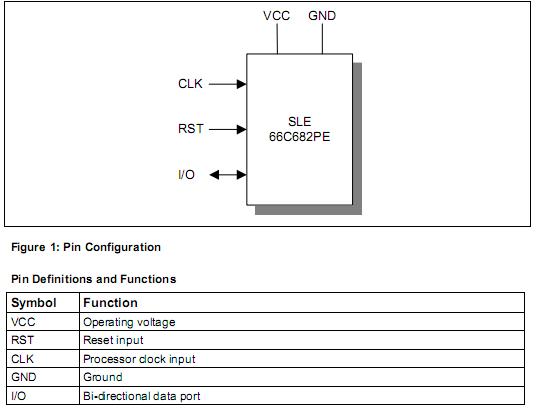

Pinout

Connection Diagram


Description

The  SLE66C682PE is another member of the improved 66PE-series of Infineon Technologies and the successor of the SLE66C640P. This high performance security crypto controller is manufactured in advanced 0.22 µm CMOS technology. It is downward compatible to existing 66P controller derivatives. The well known ECO2000 8/16 bit CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features compared to existing 66P derivatives.
