SLE66CX182PE

Features: ` 8/16-bit microcomputer in 0.22 µm CMOS technology ` Instruction set opcode compatible with standard SAB 8051 processor ` Downward compatibility to existing SLE 66CxxxP products for existing masks without using the new features ` Addressable memory up to 16 Mbyte ` Additional enha...

product image

SLE66CX182PE Picture
See larger image
SeekIC No. : 004493187 Detail

SLE66CX182PE: Features: ` 8/16-bit microcomputer in 0.22 µm CMOS technology ` Instruction set opcode compatible with standard SAB 8051 processor ` Downward compatibility to existing SLE 66CxxxP products for...

SLE66CX182PE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE66CX182PE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  8/16-bit microcomputer in 0.22 µm CMOS technology
`  Instruction set opcode compatible with standard SAB 8051 processor
`  Downward compatibility to existing SLE 66CxxxP products for existing
     masks without using the new features
`  Addressable memory up to 16 Mbyte
`  Additional enhanced instructions for direct  physical memory access of >64kByte
    `  Typically saves up to 90 % code space and increases execution speed up to 80 %
`  Dedicated, non-standard architecture with execution time 6 times faster than standard SAB 8051 processor
     at same external clock.(Up to 18 times faster using internal frequency PLL x 3 compared to external clock).
`  136 Kbytes User ROM for application programs
`  18 Kbytes MicroSlim-EEPROM for increased memory requirements in mobile applications
`  4 Kbytes XRAM, 256 bytes internal RAM, 700 bytes Crypto RAM.
`  Enhanced Memory Management and Protection Unit (MMU) with application and user defined segments
`  Dual Key Triple DES (DDES)
`  Advanced Crypto Engine:
     `  Up to 1100 bit RSA calculation in Hardware
     `  Up to 2048 bit RSA calculation in software with RSA 2048 crypto  library
          (CC EAL 5+ certified within SLE66CX322P, refer to product brief)
     `  Supports Elliptic Curves over GF[p]
`  CC EAL5+ certification according to BSI-PP-0002 planned
`  True Random Number Generator with Firmware test function
`  CRC Module 16-bit Interrupt Module
`  Code executions during E²-programming for faster personalization
`  EEPROM programming voltage generated on chip
`  Internal Clock with up to 33 MHz:
      Programmable internal frequency (PLL x1, x2, x3, x4 and free running mode(s)).
`  Adjustable internal frequency according to available power or required performance
    `  Increased internal clock frequency for maximum performance
    `  Internal frequency ist automatically adjusted to guarantee a given limited power consumption
`  Two 16-bit Autoreload Timer
`  Power saving sleep mode
`  Ext. Clock freq. 1 up to 7.5 MHz for int. Clock up to 33 MHz
`  UART for handling serial interface in accordance with ISO/IEC 7816 part 3
     supporting transmission protocols T=1 and T=0
`  Supply voltage range:1.8 V, 3.0 V, 5.0 V
`  Support of current current consumption limits by GSM / UICC applications
      < 10 mA @  5.5 V
      <   6 mA @  3.3 V
      <   4 mA @  1.98 V
`  Operating Temperature range: -25 to +85°C
`  Storing temperature range: 40° to +125°C
`  ESD protection larger than 6 kV (HBM)

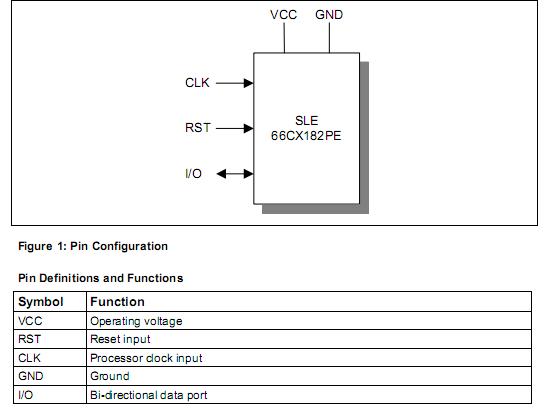

Pinout

Connection Diagram


Description

The SLE66CX182PE is a member of the improved 66PE-series of Infineon Technologies. This high performance security crypto controller is manufactured in advanced 0.22 µm CMOS technology. It is downward compatible to existing 66P controller derivatives. The well known ECO2000 8/16 bit CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features compared to existing 66P derivatives.
