SLE66R35

Features: 1 Kbyte EEPROM • Organised in 16 sectors with 4 blocks of 16 byte each • User definable access condition for each memory block • Unique chip identification number Contactless Mifare® Interface • Read and write distance up to 10 cm and more (influenced by ext...

product image

SLE66R35 Picture
See larger image
SeekIC No. : 004493208 Detail

SLE66R35: Features: 1 Kbyte EEPROM • Organised in 16 sectors with 4 blocks of 16 byte each • User definable access condition for each memory block • Unique chip identification number Conta...

SLE66R35 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE66R35
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

   1 Kbyte EEPROM
•  Organised in 16 sectors with 4 blocks of 16 byte each
•  User definable access condition for each memory block
•  Unique chip identification number

   Contactless Mifare® Interface
•  Read and write distance up to 10 cm and more (influenced by external circuitry i.e. reader-
   antenna configuration)
•  Physical Interface and Anticollision complying to ISO/IEC 14443, part 2-3
    - Contactless transmission of data and supply energy
    -  Anticollision logic: Several cards may be operated in the field simultaneously
    -  Operating frequency 13.56 MHz
    - Data rate transfer 106 Kbit/s
•  Short transaction times: Typical ticketing transaction < 100 ms (including backup); transaction
    possible with moving card

   Security Features
•  Mutual three pass authentication between card and reader
•  Data encryption for RF channel
•  Data integrity supported by several mechanisms: anticollision, 16 bit CRC, parity check, bit
   count checking and channel monitoring
•  Suited for multifunctional applications by individual key sets for each EEPROM sector
•  Access protection to EEPROM by transport key on chip delivery

    Sophisticated electrical characteristics
•  EEPROM programming time 5 ms
•  Endurance minimum 100 000 write/erase cycles / bit2)

•  Data retention for minimum of 10 years2)

•  ESD protection typical 6 kV
•  Ambient temperature - 25 . +70°C



Pinout

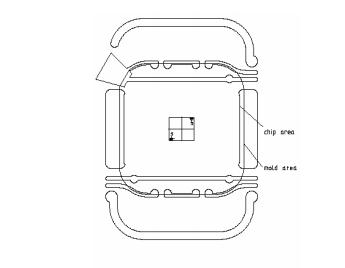

Connection Diagram


Description

SLE 66R35 consists of an EEPROM memory of 1 Kbyte organised in 16 sector with 4 blocks each containing 16 bytes, an analog interface for contactless energy and data transmission and a  control unit. The power supply and data are transferred to SLE 66R35 via an antenna, which consists of a coil with a few turns directly connected to the chip. No further external components  are necessary. The circuit is designed to communicate with a card-reader at an operating distance  up to 10 cm (or more) depending on the reader-antenna configuration.
