SLE 44C10S

Features: ` 8-bit microcomputer in CMOS technology` Instruction set opcode compatible with standard SAB8051 processor` Dedicated, non-standard architecture with execution time less than half of standard SAB 8051 processor` 7-Kbyte User ROM for application programs` 2-Kbyte manufacturer ROM for &am...

product image

SLE 44C10S Picture
See larger image
SeekIC No. : 004493035 Detail

SLE 44C10S: Features: ` 8-bit microcomputer in CMOS technology` Instruction set opcode compatible with standard SAB8051 processor` Dedicated, non-standard architecture with execution time less than half of stan...

SLE 44C10S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE 44C10S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 8-bit microcomputer in CMOS technology
` Instruction set opcode compatible with standard SAB8051 processor
` Dedicated, non-standard architecture with execution time less than half of standard SAB 8051 processor
` 7-Kbyte User ROM for application programs
` 2-Kbyte manufacturer ROM for &hip 0anagement 6ystem (CMS)
` .E\WH((3520 as program/data memory
` 256-byte RAM
` Power saving sleep mode
` Clock freq. = int. freq.: 1 to 5 MHz1) at 5 V ± 10 %, 1 to 4 MHz at 3 V ± 10 %
` Contact configuration and serial interface in accordance with ISO7816
` Supply voltage range: 2.7 V to 5.5 V
` < 10 mA supply current at 5 MHz
` Temperature range: 25 to + 70 °C 2)
` ESD protection larger than 4 kV


Pinout

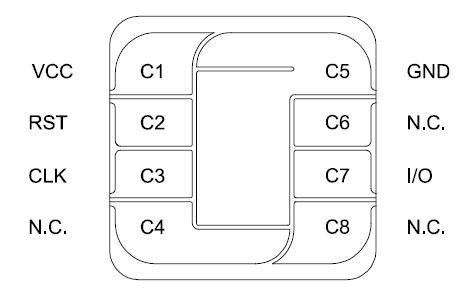

Connection Diagram


Description

SLE 44C10S is a member of the Infineon Technologies 44 security microcontroller series, especially designed for smart card applications. The device is fabricated in an Infineon Technologies proprietary CMOS technology. New features such as low voltage operation, extended page mode and I/O routines offer additional performance required in applications like metering and membership cards.
