Product Details

Description



Features:

` 8-bit microcomputer in CMOS technology
` Instruction set opcode compatible with standard SAB8051 processor
` Dedicated, non-standard architecture with execution time less than half of standard
` SAB 8051 processor
` 15-Kbyte User ROM for application programs
` 2-Kbyte manufacturer ROM for Chip Management System (CMS)
` 2-Kbyte EEPROM as program/data memory
` 256-byte RAM
` Power saving sleep mode
` Clock freq. = int. freq.: 1 to 5 MHz1) at 5 V ± 10 %, 1 to 4 MHz at 3 V ± 10 %
` Contact configuration and serial interface in accordance with ISO 7816
` Supply voltage range: 2.7 V to 5.5 V
` < 10 mA supply current at 5 MHz
` Temperature range: 25 to + 70 °C. 2)
` ESD protection larger than 4 kV

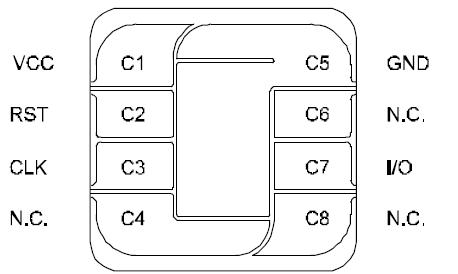

Pinout

Connection Diagram


Description

SLE 44C20S is a member of the Infineon Technologies 44 security microcontroller series, especially designed for smart card applications. The device is fabricated in a Infineon Technologies proprietary CMOS technology, resulting in a significant reduction of die size. New features such as low voltage operation, extended page mode and I/O routines offer additional performance required in applications like 3V SIM cards for GSM, payment, health care, loyalty or electronic purses.
