Product Details

Description



Features:

 · High performance CMOS technology
 · 455KHz or RC type can be selected.
 · Two to three wind modes can be selected.
     Normal, Rhythm and Sleep wind mode.
 · Three-wind grade control in each wind mode:
     Low, Medium and Strong wind.
 · Four types of timer setting by PIN option:
     ladder adder (1/2 - 1 - 2 - 4 - 8HRS / 1 - 2 - 4HRS)
     non-ladder adder (1 - 2 - 4 - 8HRS / 1 - 2 - 4HRS)
 · SPEED or ON/OFF key can enable fan controller by PIN option


Application

 · Electronic Fan
 · Heater Fan


Pinout

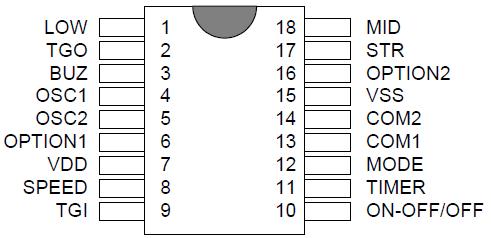

Connection Diagram


Description

SM3501 is a Fan Controller CMOS IC, has three wind modes; normal, rhythm and sleep wind. Four kinds of timer setting and a toggled O/P that can be used as swing/light.

Memory function is available; the Speed, Mode, Swing functions will operate as last state; if last state is Sleep mode, press SPEED or ON/OFF key enable fan controller while memory functions( Speed / Mode / Swing ) will be returned to the last state before sleep mode operation.
