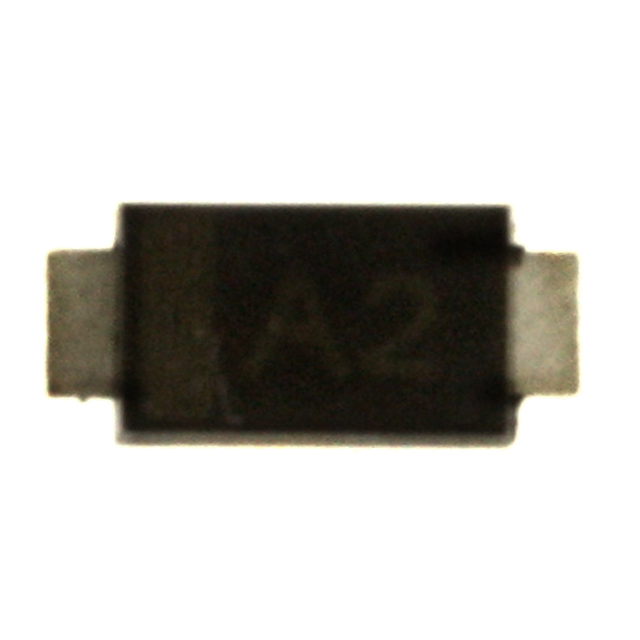

SM4002Q Product Image

SM4 Series Datasheet download

Five Points

Part Number: SM4002Q











Urgent Purchase

SM4002Q Maximum Ratings

Type
Typ
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
VRRM [V]
Surge peak reverse voltage
Stoßspitzensperrspannung
VRSM [V]
SM 4001 Q
50
50
SM 4002 Q
100
100
SM 4003 Q
200
200
SM 4004 Q
400
400
SM 4005 Q
600
600
SM 4006 Q
800
800
SM 4007 Q
1000
1000

Max. average forward rectified current, R-load           TT = 75         IFAV        1 A
Dauergrenzstrom in Einwegschaltung mit R-Last       TT = 100       IFAV        0.8 A
Repetitive peak forward current                                  f > 15 Hz         IFRM      10 A 1)
Periodischer Spitzenstrom
Peak forward surge current, 50 Hz half sine-wave     TA = 25         IFSM        40 A
Stoßstrom für eine 50 Hz Sinus-Halbwelle
Rating for fusing, t < 10 ms                                         TA = 25         i2t 8         A2s
Grenzlastintegral, t < 10 ms
Peak forward pulse current t = 1ms                            TA = 85          IFSM       100 A
Max. zulässiger Stromimpuls
Operating junction temperature - Sperrschichttemperatur                    Tj      - 50...+175
Storage temperature - Lagerungstemperatur                                       TS      - 50...+175
