Purchase SM4003Q, In-stock SM4003Q From SeekIC.
- Table of contents:
SM4003Q
-
Suppliers
DataSheet
General Description
SM4003Q Maximum Ratings
| Type Typ |
Repetitive peak reverse voltage Periodische Spitzensperrspannung VRRM [V] |
Surge peak reverse voltage Stoßspitzensperrspannung VRSM [V] |
| SM 4001 Q |
50 |
50 |
| SM 4002 Q |
100 |
100 |
| SM 4003 Q |
200 |
200 |
| SM 4004 Q |
400 |
400 |
| SM 4005 Q |
600 |
600 |
| SM 4006 Q |
800 |
800 |
| SM 4007 Q |
1000 |
1000 |
Max. average forward rectified current, R-load TT = 75 IFAV 1 A
Dauergrenzstrom in Einwegschaltung mit R-Last TT = 100 IFAV 0.8 A
Repetitive peak forward current f > 15 Hz IFRM 10 A 1)
Periodischer Spitzenstrom
Peak forward surge current, 50 Hz half sine-wave TA = 25 IFSM 40 A
Stoßstrom für eine 50 Hz Sinus-Halbwelle
Rating for fusing, t < 10 ms TA = 25 i2t 8 A2s
Grenzlastintegral, t < 10 ms
Peak forward pulse current t = 1ms TA = 85 IFSM 100 A
Max. zulässiger Stromimpuls
Operating junction temperature - Sperrschichttemperatur Tj - 50...+175
Storage temperature - Lagerungstemperatur TS - 50...+175
SM4003Q
PDF/DataSheet Download
- Datasheet: SM4003Q
- File Size: 135856 KB
- Manufacturer: DIOTEC [Diotec Semiconductor]
- Click here to Download
- ·SM4000 Series
- silicon rectifier
- 64898 KB
- ·SM4001
- DCCOM [Dc Components]
- TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER
- 117261 KB
- ·SM4001A
- BYTES [Bytes]
- 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS
- 158684 KB
- ·SM4001Q
- DIOTEC [Diotec Semiconductor]
- Surface Mount Si-Rectifiers
- 135856 KB
- ·SM4002
- DCCOM [Dc Components]
- TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER
- 117261 KB
- ·SM4002A
- BYTES [Bytes]
- 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS
- 158684 KB
- ·SM4002Q
- DIOTEC [Diotec Semiconductor]
- Surface Mount Si-Rectifiers
- 135856 KB
- ·SM4003
- DCCOM [Dc Components]
- TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER
- 117261 KB
SM4003Q Relative Products

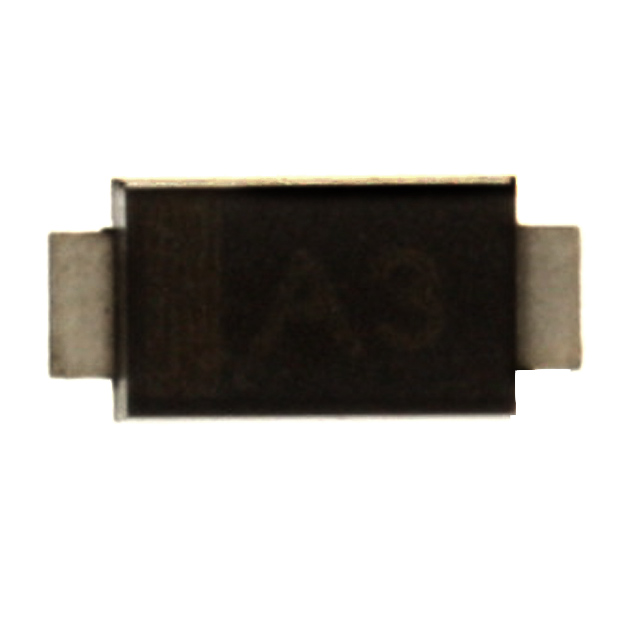

SM4003PL-TP
