SM5024

Features: ` Operating supply voltage range • 3V operation: 2.7 to 3.6V • 5V operation: 4.5 to 5.5V` Up to 30MHz operating frequency range (fundamental oscillation)` 40 to 85°C operating temperature range` Oscillator capacitors CG, CD built-in` Feedback resistor Rf built-in` fO, fO/2, f...

product image

SM5024 Picture
See larger image
SeekIC No. : 004493792 Detail

SM5024: Features: ` Operating supply voltage range • 3V operation: 2.7 to 3.6V • 5V operation: 4.5 to 5.5V` Up to 30MHz operating frequency range (fundamental oscillation)` 40 to 85°C operating ...

SM5024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 ` Operating supply voltage range
     • 3V operation: 2.7 to 3.6V
     • 5V operation: 4.5 to 5.5V
 ` Up to 30MHz operating frequency range (fundamental oscillation)
 ` 40 to 85°C operating temperature range
 ` Oscillator capacitors CG, CD built-in
 `  Feedback resistor Rf built-in
 ` fO, fO/2, fO/4, fO/8 output frequency, determinedby internal connection
 ` Output drive capability
     • 8mA (VDD= 2.7V)
     • 16mA (VDD= 4.5V)
 ` Output three-state function built-in High impedance outputs in standby mode
 ` CMOS output duty level (1/2VDD)
 ` Molybdenum-gate CMOS process
 ` Package: SOT23-6 (SM5024***H)


Application

 · DIP-type crystal oscillator modules

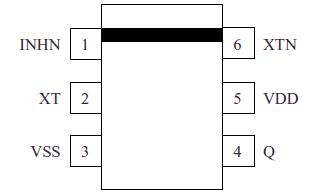

Pinout

Connection Diagram


Specifications

Parameter Symbol Condition
Rating
Unit
Supply voltage range VDD
-0.5 to 7.0
V
Input voltage range VIN
-0.5 to VDD + 0.5
V
Output voltage range VOUT
-0.5 to VDD + 0.5
V
Operating temperature range Topr
- 40 to + 85
Strage temperature ranges TSTG
-55 to 125
Output current IOUT
20
mA
Power dissipation pD
250
mW



Description

The SM5024 series are fundamental crystal oscillator module ICs. They feature an oscillator circuit with builtin capacitors with excellent frequency response and an output buffer with high output drive capability. They are available in miniature 6-pin packages, making them ideal as DIP-type crystal oscillators.
