Part Number: SM5038RF



MFG: SHMC

Package Cooled: DIP

D/C: 02+

Description: SM5038RF is a remote control decoder paired with SM5028RF utilizing CMOS Technology. It has 12-bit 2-s...


Urgent Purchase

SM5038RF General Description


SM5038RF is a remote control decoder paired with SM5028RF utilizing CMOS Technology. It has 12-bit 2-state address pins providing a 2 12 address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. SM5038RF is available in several options to suit every application needs : variable number of data output pins, latch or momentary output type.

SM5038RF Maximum Ratings

Parameter Symbol conditions
Ratings
Unit
Supply Voltage VI-VSS
-0.3~13
V
Input Voltage Vss - VDD
VSS-0.3~VDD+0.3
V
Operating Temperature Topr
-20~75
Storage Temperature Tstg VDD - Vss = 12V
-50~125

SM5038RF Features

 · CMOS Technology
 · Low Power Consumption
 · Very High Noise Immunity
 · Up to 12 2-State Code Address Pins
 · Wide Range of Operating Voltage: Vcc = 3 ~ 12 Volts
 · Single Resistor Oscillator
 · Available in DIP and SOP Package

SM5038RF Typical Application

 · Car Security
 · Garage Door
 · Home Security/Automation System
 · Toys
 · Remote Control for Industrial Use
 · Page 1

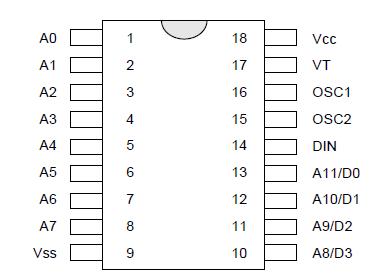

SM5038RF Connection Diagram

SM5038RF Connection Diagram

SM5038RF datasheet

SM5038RF
PDF/DataSheet Download

  • Datasheet: SM5038RF
  • File Size: 47967 KB
  • Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
  • Click here to Download
