Part Number: SM5212E









Description: SM5212E is a RF remote control encoder paired with SM5212D. It utilizes CMOS technology. The chip has ...


Urgent Purchase

SM5212E General Description


SM5212E is a RF remote control encoder paired with SM5212D. It utilizes CMOS technology. The chip has 12 bits of 2-state address pins that provides 212 codes. SM5212E/SM5212D pair is suitable for use on remote controller.

SM5212E Maximum Ratings

Parameter Symbol Test conditions
Ratings
Unit
Supply Voltage VDD-VSS
-0.3~13
V
Input Voltage VI-VSS
VSS-0.3~VDD+0.3
V
Output Voltage Vo-VSS
VSS-0.3~VDD+0.3
V
Maximum Power Consumption Pa VDD-VSS=5V
500
mW
Operating Temperature Topr
-20~70
Storage Temperature Tstg
-40~125

SM5212E Features

· CMOS technology
· Low power consumption
· Wide range operating voltage, Vcc = 2.4~12V
· Up to four data bits
· High noise immunity

SM5212E Typical Application

· Car Security
· Garage Door
· Ceiling Fan
· Home Security/Automatic
· Toys
· Wireless doorbell

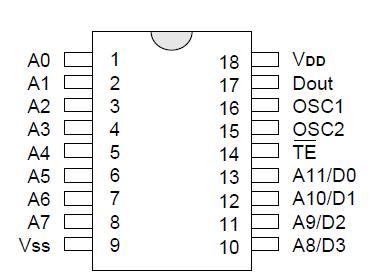

SM5212E Connection Diagram

SM5212E Connection Diagram

SM5212E datasheet

SM5212E
PDF/DataSheet Download

  • Datasheet: SM5212E
  • File Size: 52477 KB
  • Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
  • Click here to Download
