SM5852DS

Features: ·2-channel processing·XBS/LIVE functions·XBS/LIVE processing bypass mode·ASC function ON/OFF switching·Input-level dependent dynamic gain characteristics·Serial input/output interface·2s complement, MSB first, 16-bit·384fs system clock·23×23-bit multiplier/30-bit high-precision ccumulato...

product image

SM5852DS Picture
See larger image
SeekIC No. : 004493915 Detail

SM5852DS: Features: ·2-channel processing·XBS/LIVE functions·XBS/LIVE processing bypass mode·ASC function ON/OFF switching·Input-level dependent dynamic gain characteristics·Serial input/output interface·2s c...

SM5852DS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5852DS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·2-channel processing
·XBS/LIVE functions
·XBS/LIVE processing bypass mode
·ASC function ON/OFF switching
·Input-level dependent dynamic gain characteristics
·Serial input/output interface
·2s complement, MSB first, 16-bit
·384fs system clock
·23×23-bit multiplier/30-bit high-precision ccumulator
·TTL-compatible input/output
·3.2 to 5.5 V operating voltage range
·16-pin SOP
·Molybdenum-gate CMOS


Pinout

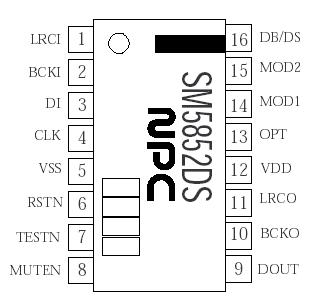

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Supply voltage VDD   - 0.3 to 7.0 V
Input voltage VIN   VSS - 0.3 to VDD + 0.3 V
Storage temperature Tstg   - 55 to 125
Power dissipation PD   250 mW
Soldering temperature Tsld   255
Soldering time tsld   10 s



Description

The SM5852DS is a digital signal processor IC that performs XBS (extra bass system), LIVE (pseudosound field) and ASC (train position) processing for use in digital audio reproduction equipment. It is designed for use with a 44.1 kHz sampling frequency.
