SM79108

Features: ·Working voltage: 3.0V ~ 3.6V For L Version 4.5V ~ 5.5V For C Version·General 8052 family compatible·12 clocks per machine cycle·8 KB internal flash memory·256 bytes on-chip data RAM·Three 16 bit timers/counters·Four 8-bit I/O ports for PDIP package·Four 8-bit I/O ports + one 4-bit I/O p...

product image

SM79108 Picture
See larger image
SeekIC No. : 004494046 Detail

SM79108: Features: ·Working voltage: 3.0V ~ 3.6V For L Version 4.5V ~ 5.5V For C Version·General 8052 family compatible·12 clocks per machine cycle·8 KB internal flash memory·256 bytes on-chip data RAM·Three...

SM79108 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM79108
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Working voltage: 3.0V ~ 3.6V For L Version
                              4.5V ~ 5.5V For C Version
·General 8052 family compatible
·12 clocks per machine cycle
·8 KB internal flash memory
·256 bytes on-chip data RAM
·Three 16 bit timers/counters
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·A14 x 4 LCD driver (P0, P2, ALE, PSEN)
·1 Channel SPWM (P1.2)
·1 Channel PWM (P1.5)
·Full duplex serial channel
·Bit operation instruction
·Industrail Level
·8-bit unsigned division
·8-bit unsigned multiply
·BCD arithmetic
·Direct addressing
·Indirect addressing
·Nested interrupt
·Two priority level interrupt
·A serial I/O port
·Power save modes: Idle mode and power down mode
·Code protection function
·One watch dog timer (WDT)
·Low EMI (inhibit ALE)

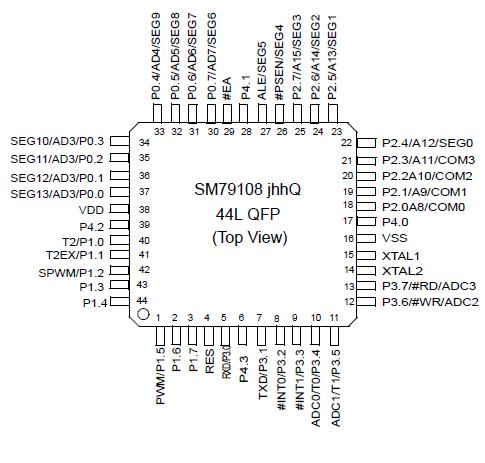

Pinout

Connection Diagram


Description

The SM79108 series product is an 8 - bit single chip micro controller with 8 KB flash & 256 bytes RAM embedded. It has 4-channel, 8-bit ADC function build-in, 1-channel SPWM and 1-channel PWM build-in and A14(segment) x 4(common) LCD driver. SM79108 provides hardware features and a powerful instruction set necessary to make it a versatile and cost effective controller for those applications demand up to 32 I/O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 64K byte flash memory for program and/or for data.To program the flash block, a commercial programmer is capable to do it.
